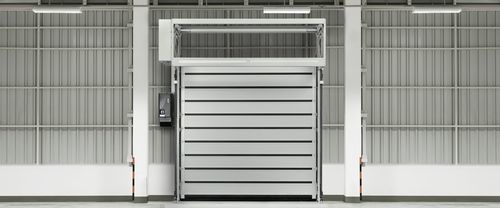

Spiral door EFA-SST® Efficient

class 2indoorexterior

Overview
Cramped installation situations require a tailored solution which fits in with the given conditions. With the high-speed spiral door EFA-SST® Efficient, EFAFLEX offers a compact and springless door which can also be positioned in locations with confined installation space. The scope of application for the EFA-SST® Efficient ranges from indoor use to use as a secure hall door. With an on-site canopy, the high-speed door can also be installed outdoors.

At a glance

• Slim frame for confined installation locations
• Chain drive ensures minimal maintenance costs
• Resistance class 2 according to DIN/TS 18194:2020 – RC 2
• Opening and closing speed up to 0.5 m/s
• Up to 150,000 operating cycles per year
• Maximum sizes: width = 4,000 mm, height = 5,130 mm
• Tested and certified by ift Rosenheim

Details

• Space-saving design: Thanks to the heavy-duty chain drive, the EFA-SST® Efficient does not require weight compensation by means of springs, saving space and maintenance costs. The compact door case dimensions enable installation in many situations. The door leaf is highly insulated, making the system suitable for indoor and outdoor use (with canopy).
• Guaranteed longevity: The door leaf consists of individual laths connected by a hinge chain. Rollers attached to the hinge chain are guided through vertical and spiral-shaped door leaf guides, producing very low noise levels and minimal wear (virtually no wear on the door leaf itself), ensuring a long service life.
• Innovative safety: Certified according to DIN/TS 18194:2020 to Resistance Class 2 (RC 2) as part of the EFAPROTECT® Series. The automatic burglary-proof locking mechanism provides effective protection against unwanted access while maintaining operational workflows.

Brochure and technical documentation
Brochure and tender documentation are available for the spiral doors (product and series documentation).

Technical specifications

• Model name: EFA-SST® Efficient
• Brand: EFAFLEX
• Drive type: heavy-duty chain drive (springless)
• Weight compensation: not required (no springs)
• Door leaf: individual laths connected by a hinge chain
• Guidance: rollers guided through vertical and spiral-shaped door leaf guides
• Opening / closing speed: up to 0.5 m/s
• Operating cycles: up to 150,000 cycles per year
• Maximum clear opening sizes: width 4,000 mm; height 5,130 mm
• Thermal performance: highly insulated door leaf (suitable for indoor and outdoor with canopy)
• Security: Resistance Class RC 2 according to DIN/TS 18194:2020; automatic burglary-proof locking mechanism
• Certifications / testing: tested and certified by ift Rosenheim
• Noise & wear: very low noise level; minimal wear on components and virtually no wear on the door leaf
• Typical applications: secure hall doors, indoor installations with confined space, outdoor installations with canopy
