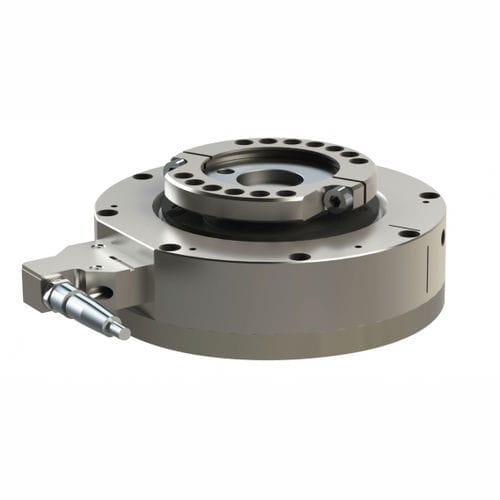

Air-operated robotic compliance unit / collision sensor QS series

automated loading/unloading

The QS is a dynamically variable collision sensor that operates on an air pressure system – and provides excellent protection in machine load/unload robotics applications. A regulated air supply provides positive, variable pressure to hold the collision sensor rigid during normal operation. At impact, the air chamber seal is opened, immediately signaling the system controller. ADVANTAGES Dynamically variable trip points Permanent repeatability Detects angular, rotational and compressive forces QS-AW and QS-7500 are supplied with screen collar *From robot adaptor interface plate **Varies with air pressure and speed of impact Operating pressure 1 – 6 bar (from QS-7 to QS-400) – 1.4 – 6 bar (from QS-800 to QS-7500) Ambient temperature 0-70°C (from QS-7 to QS-AW) – 0-100°C (from QS-400 to QS-7500) Sound emissions (sound pressure) ≤ 70 db (A) in each direction
