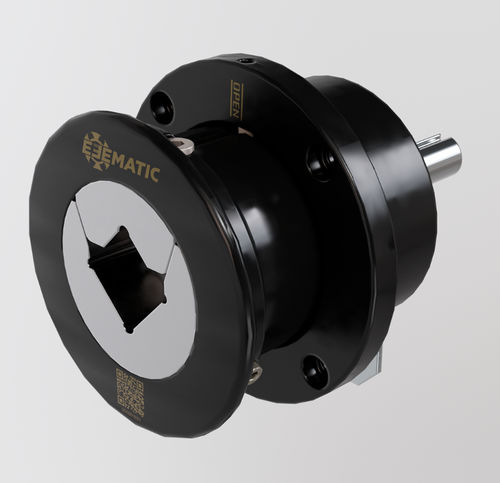

Manual safety chuck

for winding shaftsliding

Overview
Designed to hold double-supported expanding shafts and transmit torque, serving as the link between a motor/brake and an expanding roll shaft. Various construction materials and surface treatments are available to meet strict industry standards.

Operation
Manual opening via sliding ring. Anti-opening safety system permits opening only when there is no risk of the roll shaft falling. The support prevents startup if not fully closed (safety interlock). The page contains two referenced load values: a technical table listing 1600 kg and a general text reference up to 2,200 kg.

Assembly

• Flange mounted
• Foot mounted

Technical data
Support weight: not specified
Safety system: Anti-opening
Maximum load (table): 1600 kg
Maximum speed: 300 rpm
Maximum torque: 350 Nm
Operation note: page also mentions up to 2,200 kg in the descriptive text

Features / Technical specifications

• Manual opening mechanism with sliding ring
• Anti-opening safety and anti-start interlock
• Load capacity references: 1600 kg (table) and up to 2,200 kg (text)
• Rated maximum speed: 300 rpm
• Maximum torque: 350 Nm
• Available assembly types: flange-mounted and foot-mounted
• Various construction materials and surface treatments to comply with industry standards
