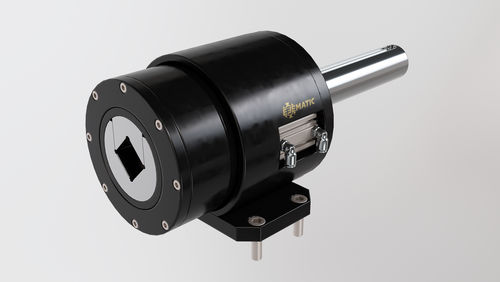

Pneumatic safety chuck

for winding shaft

Overview
Designed to hold double-supported expanding shafts and transmit power, acting as the interface between a motor/brake and the expanding roll shaft.

Operation

• Semi-automatic opening via a solenoid valve that operates two pneumatic cylinders integrated in the support.
• Active safety system with rotation-point sensing to indicate whether opening is safe (anti-opening function).
• Opening is actuated by a button or lever positioned in an operator-friendly area.
• Contact area with the expanding shaft is interchangeable and treated by gas nitriding to provide high surface hardness and extended service life.
• Load capacity mentioned in page text: 3,500 kg.

Contact area and treatment
The interchangeable contact area features gas nitriding surface treatment for improved hardness and longevity of wearable components.

Assembly

• Flange Mounted
• Foot Mounted

Technical Data
Support Weight: not specified
Safety System: Anti-opening
Maximum Load Capacity (table): 2200 kg
Maximum Speed: 1100 rpm
Maximum Torque: 900 Nm
Note: two different load values appear in the documentation—3,500 kg (text) and 2,200 kg (technical table). Verify the applicable value for the specific model on its datasheet.

Features / Technical specifications

• Semi-automatic opening with solenoid valve controlling two integrated pneumatic cylinders.
• Active rotation-point sensing safety system (anti-opening).
• Operator actuation: button or lever in an operator-friendly location.
• Interchangeable contact area with gas nitriding surface treatment for increased hardness and lifespan.
• Load capacity mentioned in page text: 3,500 kg; maximum load in technical table: 2,200 kg — verify on model datasheet.
• Maximum Speed: 1100 rpm.
• Maximum Torque: 900 Nm.
• Assembly options: Flange Mounted, Foot Mounted.
