Expanding shaft adapter Adaptadores para Ejes Expansibles

Product overview

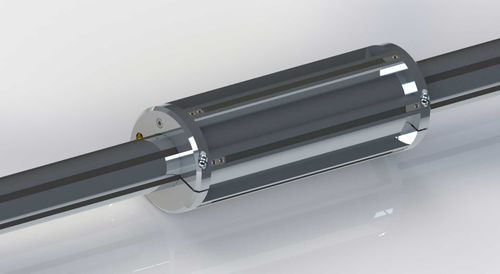

Adapter sleeves to enable expanding shafts or fixed bars to accept different inner coil/core diameters. Designed for quick changeovers and secure clamping when converting mandrels and coils. Mounting is possible on a smaller expanding (pneumatic) shaft or on a fixed steel bar. Anchoring is achieved either by expansion of the inner shaft or by a mechanical clamp.

Applications

• Industrial unwinding and rewinding systems in packaging, printing, paper and textile industries.
• Conversion of expanding shafts to accept larger or smaller core diameters for fast, repeatable clamping of coils.

Standard diameters / Expansion ranges

• By inner coil diameter Ø69–Ø148 mm — Expansion range Ø148–Ø157 mm.
• By inner coil diameter Ø75–Ø148 mm — Expansion range Ø148–Ø157 mm.
• By inner coil diameter Ø34–Ø75 mm — Expansion range Ø75–Ø79 mm.

Assembly and anchoring methods

• By inner shaft expansion: adapter is mounted on a pneumatic expanding base shaft; expansion of the base shaft provides the clamping force.
• By clamp: adapter is equipped with a clamp that closes around and secures the base shaft (base can be a fixed steel bar).

Manufacturing and materials
Special dimensions and custom versions available on request. Some adapter variants are produced in aluminum (depending on model) to provide accurate and rapid clamping in industrial lines.

Technical specifications

• Function: adapt expanding shafts to different inner coil/core diameters.
• Common conversions: Ø34 → Ø75 mm, Ø69 → Ø150 mm.
• Standard inner diameter groups: Ø34–Ø75 mm, Ø69–Ø148 mm, Ø75–Ø148 mm.
• Documented expansion ranges: Ø75–Ø79 mm, Ø148–Ø157 mm (model dependent).
• Anchoring methods: inner shaft (pneumatic) expansion or mechanical clamp.
• Mounting options: on pneumatic expanding shafts or on fixed steel bar.
• Material examples: aluminum (depending on model).
• Brand: EJEMATIC
