Blade cut-to-length cutting line

sheetservo-drivencrosscut

Overview
Designed to perform cross cuts on flexible web to produce sheets. Suitable for a wide range of flexible materials and effective at both low and high operating speeds.

Operation

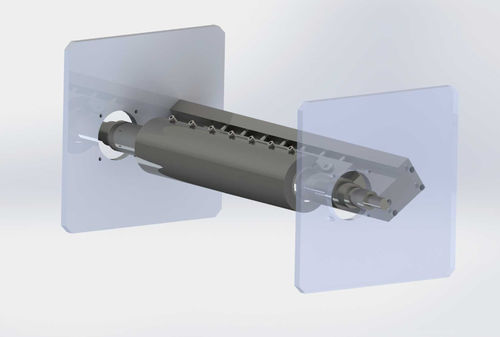

Consists of an anvil with a flat blade and a parallel roller carrying a second flat blade. Roller rotation creates controlled interference between the two blades to cut the web. Blades feature four cutting edges, are resharpenable, removable and individually adjustable to set cutting angle or 90° cuts. Blade replacement and adjustment are straightforward; standard spare blades are available in several formats.

Configurations

• Variable format: Servo-motorized drive to adjust sheet length as required.
• Fixed format: Transmission-mounted to the machine pull motor for constant-format cutting regardless of operating speed.

Maintenance & Blades
Blades with four cutting edges, resharpenable. Quick replacement and independent blade adjustment reduce downtime. Standard spare blades in multiple formats are available for rapid service.

Technical characteristics / Specifications

• Type of cut: transverse / cross cutting of flexible web to obtain sheets
• Cutting components: anvil with flat blade + parallel roller with second flat blade
• Blade features: four cutting edges, resharpenable, removable and adjustable
• Cut angle: adjustable for angled cuts or 90° (individual blade adjustment)
• Format control: available in variable (servo-motorized) or fixed (transmission-mounted) configurations
• Drive requirement: transmission (mounted to machine pull motor for fixed format)
• Speeds: suitable for both low-speed and high-speed processes
• Materials: compatible with a wide range of flexible web materials
• Spare parts: standard spare blades available in various formats
