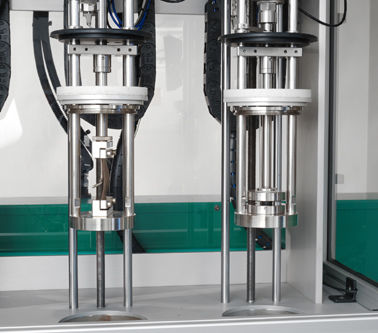

Tensile stress relaxation testing machine EB 18-II

creep

With the EB 18-II-3 automatic Relaxation and Creep Tester, these tests can be carried out automatically. The instrument has an individual control of each test station. The test rigs are based on our relaxation rig EB 02, but lowering and raising of the rigs is motor driven. The compression or tension of the samples is also motor driven with a servo motor. The test rigs are built into a plastic cabinet made of polycarbonate and aluminium profiles. The cabinet is cooled by Peltier elements which keep a constant room temperature around the test station. Improvments Some important improvements: Micro PLC control Improved insulation for lower energy consumption, which means lower environment stress and costs Lower surface temperature Settings are done on the colour touch screen Resettable countdown timer for each cell More userfriendly software Alarm history
