Resistivity measuring instrument EE 01-IIvolume
Add to favorites
Compare this product
Characteristics
- Measured value
- resistivity, volume
Description

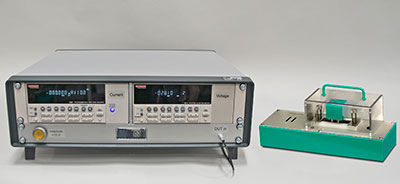

Volume Resistivity Tester, EE 01-II, for determination of volume resistivity on conductive and semi-conductive rubber materials, according to ISO 1853.
The measuring range is from 10-1 Ohm·m to 108 Ohm·m.
The system includes:
A voltage instrument with 200 TΩ input impedance
A current instrument with an excitation voltage supply
Three sets of test piece holders
An electrode with specified contact design and load
A safety cage which disconnects the voltage when opened
Cables required
A spreadsheet template to calculate results
