Temperature monitoring system ELECTRO-SENTRY 1

speedalignmentprocess

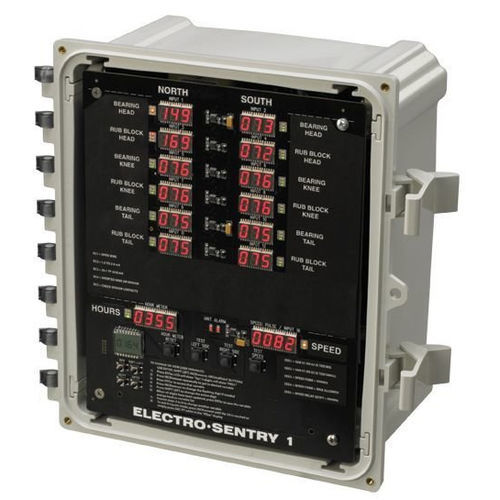

Hazard Monitoring System for Single-Leg or Conveyor Features Monitor 1 speed and 12 bearing and/or belt alignment sensors All sensor values and alarms are displayed on front panel Green, Yellow, Red LED's for each sensor to display alarms Latching of Alarm Values for identification for warning or shutdown Direct interface to Electro-Sensors' speed and temperature sensors One-button tests for all sensors, set points, and alarm output relays Class II, Div 1 dust ignition-proof sensors for hazardous locations The Electro-Sentry 1 Controller is part of a hazard monitoring system commonly used on grain elevator legs or conveyors to monitor critical points for shaft slowdown, bearing temperature, and belt alignment as part of a predictive maintenance program to protect against catastrophic breakdowns and machinery failure resulting in product waste, machinery damage, and process downtime. Electro-Sensors' 4-20mA Speed & Temperature sensors are compatible with the ES1 and provide live sensor data of machine performance.
