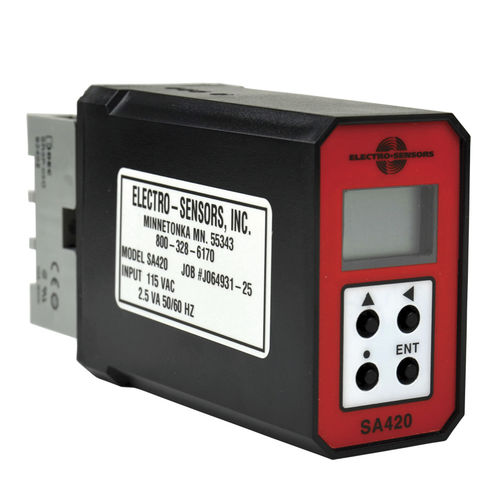

Digital signal conditioner SA420

DIN rail

Features DIN rail mount enclosure Wide range of voltage options Input frequencies to 10 kHz, 115 VAC standard, 220 VAC, 12 / 24 VDC optional LCD display for field adjustable calibration ETL approved to applicable UL and CSA standards Single channel & Quadrature channels available Voltage Options* 0-10 VDC, 0-5 VDC, ± 5 VDC, ± 10 VDC The SA420 interfaces with a wide variety of sensors and provides an analog signal directly proportional to the speed of a monitored shaft. The voltage outputs can be sent to a chart recorder, digital display, PLC, loop controller, drive speed controller, or any other control or monitoring device. The wide voltage range and wave shape flexibility of the SA420 input circuitry allow it to translate signals from Hall Effect sensors, proximity switches, magnetic sensors, and a wide variety of other pulse generators, into analog outputs. Features available when unit is programmed for the advanced display mode. (See Addendum)
