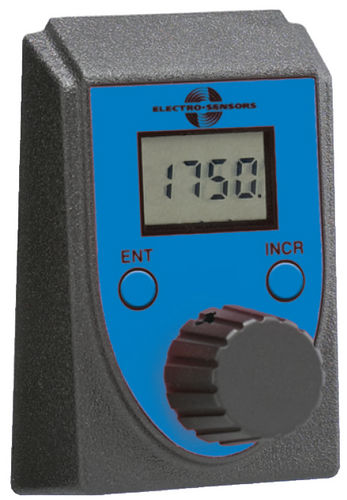

Rotary potentiometer Accu-Tach

manualdigitalfor control

Features Accurate visual feedback of setpoints in user-defined units assures repeatability across operators LCD display assures accuracy, reduces wasted materials, and saves money Quick and easy installation and calibration EEPROM protection retains programming and calibration in the event of power failure Robust turning knob engineered for precision and strength Housed in a tough ABS plastic enclosure - NEMA 4 rated. Accu-Series control potentiometers are compact and accurate with digital display that replace traditional machine potentiometers. Accu-Dial and Accu-Tach control devices allow you to economically and accurately monitor and control your processes. The LCD display has a range of 0.000 to 9,999 and can be calibrated in user-units, including time in process (TIP). Accu-Series potentiometers feature a precise 10-turn potentiometer to give the operator a smooth feel with a robust turning knob to reduce mechanical set point movement in high-vibration environments. Accu-Series potentiometers mount through the same hole as a traditional potentiometer. Accu-Dial Accu-Dial is a stand-alone product and is ideal for applications such as AC/DC variable speed motor drives, temperature control, hydraulic and pneumatic systems or any system currently using a traditional potentiometer. Accu-Tach Accu-Tach is available as a 2 or 3 piece system and provides the same level of control as the Accu-Dial, but with feedback measurement. The Accu-Tach's four user variables are programmed quickly and easily via the two push buttons on the front panel of the housing.
