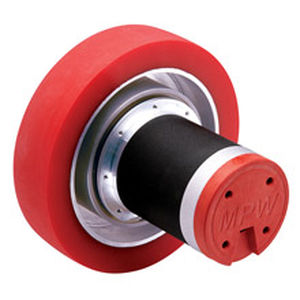

BLDC motor wheel MPW86
for AGVheavy-duty

BLDC motor wheel
BLDC motor wheel
BLDC motor wheel
BLDC motor wheel
BLDC motor wheel
BLDC motor wheel
BLDC motor wheel
Add to favorites
Compare this product


Characteristics

Type
BLDC
Applications
for AGV
Protection level
heavy-duty
Diameter

200 mm (7.87 in)

Weight

Min.: 4 kg (9 lb)

Max.: 5 kg (11 lb)

Operating temperature

Min.: -40 °C (-40 °F)

Max.: 25 °C (77 °F)

Torque

30 Nm, 35 Nm (22 ft.lb)

Power

Min.: 346 W (0.47 hp)

Max.: 561 W (0.76 hp)

Speed range

Min.: 2 m/s (6.56 ft/s)

Max.: 4 m/s (13.12 ft/s)

Description

Summary DetailsSize: 86mm brushless DC gear motor, 200mm wheel Peak Torque: 35 Nm (310 lb.in) Maximum Load: 227 Kg (500 lbs.) per wheel Rated Speed: From 1.6 to 4.3 meters/second Introducing ElectroCraft's new MobilePower™ MPW86 wheel drive, featuring a high torque-density brushless DC motor with integrated planetary gearbox and wheel assembly. ElectroCraft's MPW86 integrates an 8-pole Brushless DC motor with a heavy-duty, single or two-stage planetary gearbox mounted inside the hub of an aluminum wheel with polyurethane tread. Designed for mobile platform traction systems with optional encoder feedback to support positioning capability and electromagnetic brake to hold position when power is removed. The MPW86 combines optimum performance with high-efficiency, quiet operation and long life. ElectroCraft MobilePower™ MPW series wheel drives feature an integrated design that provides increased performance and reliability at an affordable price compared to traditional motor/gearbox/wheel combinations. As with all ElectroCraft products, the MPW series wheel drives are customizable to meet specific application requirements. Features: • Smooth, efficient motion • Compact, lightweight, durable and highly reliable integrated design • Powerful starting torque: • Peak torque up to 35 Nm • Continuous torque up to 20 Nm • Configurable or completely customizable designs • Motor, gearbox, wheel, brake, encoder, cabling • Typical applications: • Automated Guided Vehicles • Autonomous Mobile Robots
