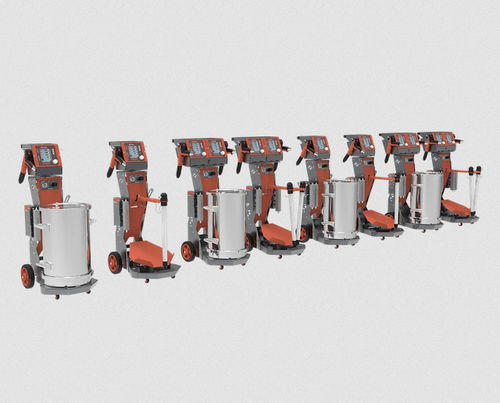

MASTER LEVEL POWDER COATING EQUIPMENT WITH APPLICATION PUMP TECHNOLOGY
Powerful and Technological Solution Designed for High-Capacity Applications
E-COAT+3 MASTER P Series devices are pump-fed upper segment devices where pneumatic and electrical parameters are digitally controlled through the front panel. While electrical controls remain dependent on voltage and current, it provides the ability to proportionally adjust the air values of the application pump.
The factory settings, along with 50 different customizable electrical/pneumatic specifications, dual triggering options, PLC automation and bluetooth connectivity, make the E-COAT+3 MASTER the optimal solution for especially advanced manual and automated applications where it is necessary to pump the powder for high surface quality and/or higher dust output.
Depending on the powder workpiece icle size, it exhibits paint output performance up to 550 g/min for a single pump and up to 950 g/min for a double pump. The sub-10 µA micro charge control option, as well as the 120kV-120µA maximum charge capacity and built-in LED lighting features create a unique coating experience for users. It can respond to different application needs with automatic, manual options and a wide range of accessories
SIMPLE AND COMPACT DESIGN
5.0'' TFT SCREEN
E-FEED +3 AP
Double & Single Pump
Compatible
ROTATABLE HEAD
Accurate static voltage and current control with feedback
Hybrid proportional valve system not affected by inlet pressure changes
Proportional and independent pneumatic adjustment option
Ability to save 50 different prescriptions
4 quick prescription options
