Thickness measuring system Swan RFX

gaugelaserinductive

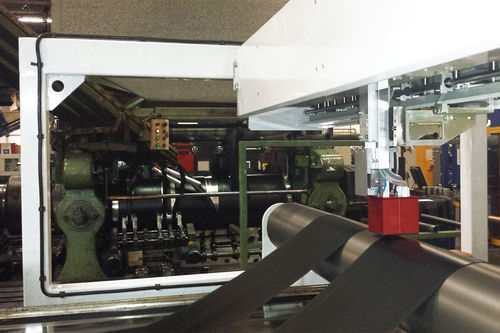

Laser Swan RFX SWAN LASER is a reflection gauge engineered for direct thickness measurement. The gauge uses a combined technology lASER-InDucTIVE with a patented auto calibration method. MAIN FEATURES Automatic reference roll tracking system Extremely durable and mechanically stable sensor shift system Probe suitable to be pressurized to keep the LASER optics cleaned in heavy industrial environment Protection against accidental contact with the material being measured Simple and compact structure with high shock resistance Suitable for measuring wide product in an extremely wide thickness range Category: Sensors. Description SWAN LASER is installed on scanners equipped with reference roll for measurement in reflection mode, where the same roll represents the zero reference to determine the measurement values. Is used for flexible materials guaranteeing a good adherence to the reference roll. Depending of the application, a security system to detect lumps and/or extra thickness (lump-detector), external to the measurement system could be used.
