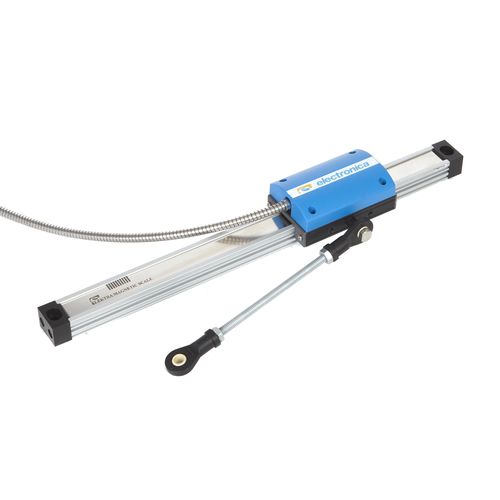

Press brake linear encoder
incrementalmagneticsealed

press brake linear encoder
press brake linear encoder
Add to favorites
Compare this product


Characteristics

Type
incremental
Technology
magnetic
Construction
sealed
Output signal
digital
Protection level
robust, waterproof, impact-resistant
Applications
for harsh environments, for press brakes
Other characteristics
guided
Length

Min.: 170 mm
(6.693 in)

Max.: 520 mm
(20.472 in)

Resolution

Min.: 1 µm

5 µm

Max.: 10 µm

Description

The Press Brake Scale by Electronica Mechatronic Systems is fully guided environmentally sealed scale with high mounting tolerance. The high performance encoder system provides resolution from 1 - 10 µm and accuracy up to ±10 µm/m. The robustly designed IP67 protection class scale provides maximum protection from dust, coolant and vibrations in a Press Brake machines and equally suited for other fabrication and automation applications.
