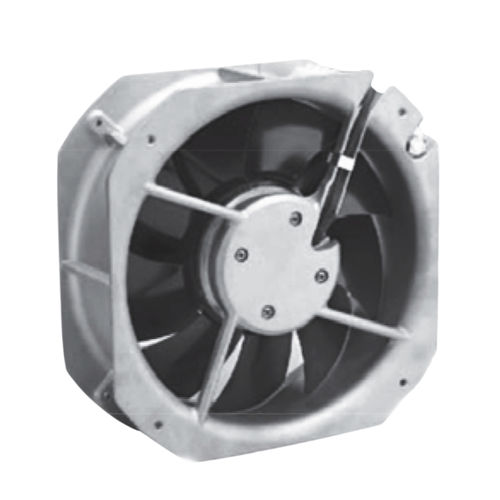

High-pressure fan EA series

waterproofwashdownreversible

Overview
IP68 / IP69K AC fan family (EA / EBA models) for washdown and harsh industrial environments. Available in axial and centrifugal configurations across multiple sizes and performance ranges.

AC IP68 / IP69K Axial Fans - Key models

• EA2589C — Ø254 × 89 mm (Ø10 × 3.5 in); Max airflow 15.5 m3/min (550 CFM); Metal frame, plastic blade; Thermal protection.
• EA1555CM — 172 × 150 × 55 mm; Max airflow 6.5 m3/min (230 CFM); Metal frame & blades; Thermal protection.
• EA1238 — 120 × 120 × 38 mm; Max airflow ~2.3–3.0 m3/min (≈82–106 CFM); Metal frame, plastic blade; Impedance protected.
• EBA22056 — 220.0 × 56.2 mm; Max airflow 3.6 m3/min (126 CFM); AC blower fan; Thermal protection.
• EA2890CMR — 280 × 280 × 89 mm; Max airflow 36.8 m3/min (1,300 CFM); Reverse airflow; Thermal protection.
• EA2890CM — 280 × 280 × 89 mm; Max airflow 36.8 m3/min (1,300 CFM); Metal frame & blades; Thermal protection.
• EA2589CM (7) — Ø254 × 89 mm; Max airflow 28.3 m3/min (1,000 CFM); Metal frame, 7 blades; Thermal protection.
• EA2589CM (3) — Ø254 × 89 mm; Max airflow 26.3 m3/min (930 CFM); Metal frame & blades; Thermal protection.
• EA1238 Mark 2 — 120 × 120 × 38 mm; Max airflow 3.8 m3/min (135 CFM); Plastic frame & blades; Impedance protection.

AC IP68 / IP69K Centrifugal Fans - Key models

• EA355120C — Ø355 × 120 mm; Max airflow 36.8 m3/min (1,300 CFM); Backward curved impeller; IP68/IP69K.
• EA305114C — Ø305 × 114 mm; Max airflow 25.7 m3/min (906 CFM); Backward curved impeller; IP68/IP69K.
• EA305112C — Ø305 × 112 mm; Max airflow 25.7 m3/min (908 CFM); Backward curved impeller; IP68/IP69K.
• EA250094C — 250 × 94 mm; Max airflow 18.4 m3/min (650 CFM); Backward curved impeller; IP68/IP69K.
• EA225101C — Ø225 × 101 mm; Max airflow 18.1 m3/min (640 CFM); Backward curved impeller; IP68/IP69K.
• EA225099C — 225 × 99 mm; Max airflow 18.1 m3/min (640 CFM); Backward curved impeller; IP68/IP69K.
• EA220076C — 220 × 76 mm; Max airflow 15.9 m3/min (560 CFM); Backward curved impeller; IP68/IP69K.
• EA190067C — 190 × 67 mm; Max airflow 10.2 m3/min (360 CFM); Backward curved impeller; IP68/IP69K.
• EA175085C — 175 × 85 mm; Max airflow 8.5 m3/min (300 CFM); Backward curved impeller; IP68/IP69K.
• EA175067C — 175 × 67 mm; Max airflow 8.1 m3/min (285 CFM); Backward curved impeller; IP68/IP69K.
• EA133080C — 133 × 80 mm; Max airflow 4.7 m3/min (165 CFM); Backward curved impeller; IP68/IP69K.

Technical specifications

• Protection rating: IP68 / IP69K — designed for immersion and high-pressure washdown.
• Fan types: Axial (including blowers) and centrifugal with backward curved impellers.
• Materials: Metal frames and blades or plastic frames/blades depending on model.
• Airflow range: ≈2.3 to 36.8 m3/min (≈82 to 1,300 CFM) depending on model.
• Size range: from 120 × 120 × 38 mm up to Ø355 × 120 mm and 280 × 280 × 89 mm.
• Protection features: thermal protection on many models; impedance protection on selected small units; reversible airflow options on specific models.

Applications & Notes

• Typical applications: cooling and ventilation for industrial enclosures, washdown equipment, food processing, outdoor cabinets and other harsh environments requiring IP68/IP69K ingress protection.
• Data subject to change without notice; performance tolerances of ±10% apply.
