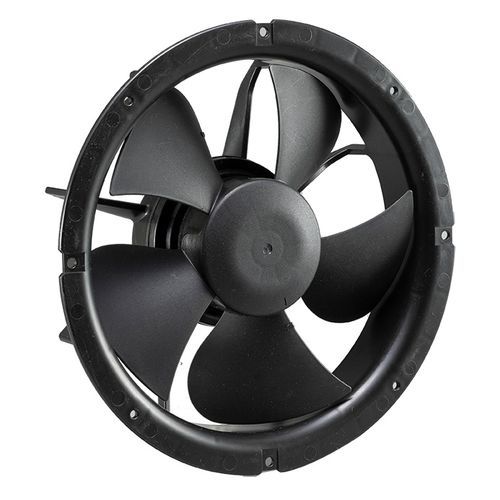

High-flow fan EC series

ATEXwaterproofwashdown

Product
Range of EC (electronically commutated) axial fans with IP68/IP69K ingress protection ratings for industrial cooling and ventilation applications. Models feature electronically protected motors; some offer universal voltage compatibility.

Available models / Specifications

• EC6025 | 60 x 60 x 25 mm / 2.36 x 2.36 x 1.00 in | Max airflow: 0.55 m³/min / 19.4 CFM | Electronically protected; Universal Voltage
• EC8025 | 80 x 80 x 25 mm / 3.15 x 3.15 x 1.00 in | Max airflow: 0.9 m³/min / 31 CFM | Electronically protected; Universal Voltage
• EC9225 | 92 x 92 x 25 mm / 3.62 x 3.62 x 1.00 in | Max airflow: 1.1 m³/min / 39 CFM | Electronically protected; Universal Voltage
• EC9238 | 92 x 92 x 38 mm / 3.62 x 3.62 x 1.50 in | Max airflow: 1.4 m³/min / 50 CFM | Electronically protected; Universal Voltage
• EC1238 | 120 x 120 x 38 mm / 4.70 x 4.70 x 1.50 in | Max airflow: 3.0 m³/min / 106 CFM | Electronically protected; Universal Voltage
• EC1551 | 172 x 150 x 51 mm / 6.70 x 5.90 x 2.00 in | Max airflow: 6.2 m³/min / 220 CFM | Electronically protected; Universal Voltage
• EC2578 | Ø 250 x 78.5 mm / Ø 9.84 x 3.1 in | Max airflow: 14 m³/min / 495 CFM | Electronically protected
• EC2578M | Ø 250 x 78.5 mm / Ø 9.84 x 3.1 in | Max airflow: 13 m³/min / 460 CFM | Electronically protected; Metal blades
• EC2589 | Ø 254 x 89 mm / Ø 10 x 3.5 in | Max airflow: 25.7 m³/min / 910 CFM | Electronically protected

• We reserve the right to change the data without further notice.
• Performance data subject to ±10% tolerance.

Technical specifications

• Type: EC (electronically commutated) axial fans with IP68 / IP69K classification.
• Protection: Electronically protected motors (as indicated per model).
• Voltage: Universal voltage available for specified models.
• Size range: from 60 x 60 x 25 mm up to Ø254 x 89 mm (various models).
• Airflow range: approximately 0.55 m³/min (19.4 CFM) to 25.7 m³/min (910 CFM) depending on model.
• Construction notes: EC2578M fitted with metal blades; other models use standard construction with electronic protection.
• Standards/variants: Some models may have ATEX or other variant series; consult separate documentation where applicable.
• Tolerances and revisions: Performance data subject to ±10% tolerance; specifications may change without prior notice.
