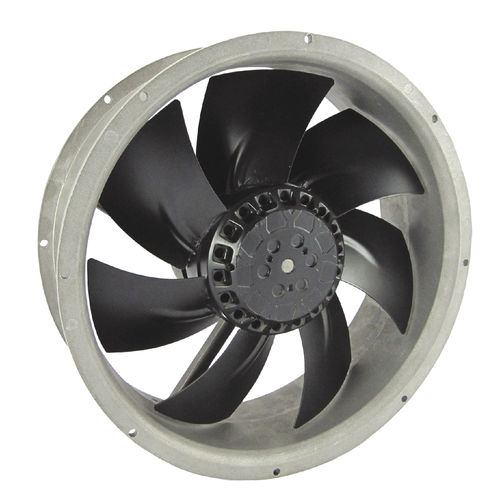

High-pressure fan ED series

waterproofwashdownaxial

Product overview
DC IP68/IP69K axial and centrifugal brushless fans engineered for harsh environments and high-pressure washdown. Range covers small 40 x 40 x 28 mm units up to large Ø254 x 89 mm axial fans and several backward-curved impeller centrifugal models. Typical use cases include enclosures and equipment requiring liquid ingress and washdown protection.

DC IP68 / IP69K Axial Fans - Models and key data (table representation)
ED2589 — Ø 254 × 89 / Ø 10 x 3.5 — 28.3 m3/min / 1,000 CFM — DC brushless fan. IP68 / IP69K.
ED1551 — 172 x 150 x 51 / 6.70 x 5.90 x 2.00 — 13.4 m3/min / 472 CFM — DC brushless fan. IP68 / IP69K.
ED1238 — 120 x 120 x 38 / 4.70 x 4.70 x 1.50 — 5.1 m3/min / 180 CFM; 8.1 m3/min / 285 CFM; 6.8 m3/min / 240 CFM — DC brushless fan. IP68 / IP69K.
ED1225 — 120 x 120 x 25 / 4.70 x 4.70 x 1.00 — 3.8 m3/min / 135 CFM; 3.4 m3/min / 120 CFM — DC brushless fan. IP68 / IP69K.
ED9238 — 92 x 92 x 38 / 3.62 x 3.62 x 1.50 — 4.8 m3/min / 168 CFM — DC brushless fan. IP68 / IP69K.
ED9225 — 92 x 92 x 25 / 3.62 x 3.62 x 1.00 — 1.9 m3/min / 66 CFM — DC brushless fan. IP68 / IP69K.
ED8038 — 80 x 80 x 38 / 3.15 x 3.15 x 1.50 — 3.7 m3/min / 132 CFM — DC brushless fan. IP68 / IP69K.
ED8032 — 80 x 80 x 32 / 3.15 x 3.15 x 1.25 — 2.5 m3/min / 88 CFM — DC brushless fan. IP68 / IP69K.
ED8025 — 80 x 80 x 25 / 3.15 x 3.15 x 1.00 — 1.8 m3/min / 64 CFM — DC brushless fan. IP68 / IP69K.
ED6025 — 60 x 60 x 25 / 2.4 x 2.4 x 1.00 — 1.3 m3/min / 45 CFM; 1.6 m3/min / 57 CFM — DC brushless fan. IP68 / IP69K.
ED4028 — 40 x 40 x 28 / 1.6 x 1.6 x 2.2 — 0.7 m3/min / 24.5 CFM — DC brushless fan. IP68 / IP69K.

DC IP68 / IP69K Centrifugal Fans - Models and key data (table representation)
ED250110 — Ø 250 x 110 / Ø 9.8 x 4.3 — 26.1 m3/min / 920 CFM — Backward curved impeller. IP68 / IP69K.
ED225099 — Ø 225 x 99 / Ø 8.8 x 3.89 — 23.6 m3/min / 835 CFM — Backward curved impeller. IP68 / IP69K.
ED221071 — Ø 221.5 x 71 / Ø 8.7 x 2.7 — 17.6 m3/min / 621 CFM — Backward curved impeller. IP68 / IP69K.
ED175069 — Ø 175 x 69 / Ø 6.9 x 2.7 — 12.4 m3/min / 437 CFM — Backward curved impeller. IP68 / IP69K.
ED175067 — Ø 175 x 67 / Ø 6.9 x 2.6 — 11.2 m3/min / 395 CFM — Backward curved impeller. IP68 / IP69K.
ED133091 — Ø 133 x 91 / Ø 5.2 x 3.5 — 9.2 m3/min / 326 CFM — Backward curved impeller. IP68 / IP69K.

Notes

• We reserve the right to change the data without further notice.
• Data performance subjected to 10% tolerance.

Specifications / Technical data

• IP rating: IP68 and IP69K (liquid ingress and high-pressure washdown protection).
• Fan types: DC brushless axial fans and DC brushless centrifugal fans with backward-curved impellers.
• Model families: ED2589, ED1551, ED1238 (incl. Mark 2 / Mark 3 variants), ED1225 (Mark 2), ED9238, ED9225, ED8038, ED8032, ED8025, ED6025 (incl. Mark 2), ED4028, ED250110, ED225099, ED221071, ED175069, ED175067, ED133091.
• Size range (axial): from 40 x 40 x 28 mm up to Ø 254 × 89 mm. Size range (centrifugal): Ø 133 x 91 mm up to Ø 250 x 110 mm.
• Airflow range: approximately 0.7 to 28.3 m3/min (≈ 24.5 to 1,000 CFM) depending on model.
• Typical applications: enclosure and equipment cooling in harsh environments where IP68/IP69K protection is required (washdown, ingress protection).
• Notes: performance data may vary; tolerance ±10% and product data subject to change.
