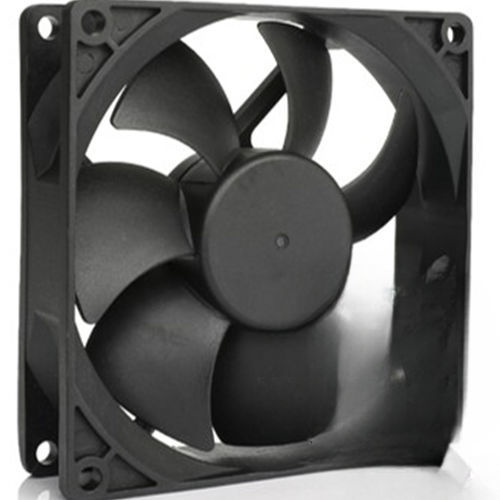

ATEX fan SD series

axialexplosion-proofDC

Overview
Family of explosion-proof (ATEX) DC axial fans for use in hazardous locations. This range includes multiple models and sizes with ATEX certification, provided with model references, mechanical dimensions and maximum airflow data. All models listed are electronically protected.

ATEX Certificate Issued According To :
UL60079-0, Edition 7, Issue date 2019-03-23, Rev. date 2024-07-19
UL60079-7, 5th Ed, Issue date 2017-02-24, Rev. date 2021-06-03
CSA C22.2 No.60079-0 Edition 4, Issued 2019-02-01
CSA C22.2 No.60079-7 Edition 2, AMD 1, Issued Date 2016-10, Revision Date 2018-09

Class
Class 1, Zone 2, AEx ec IIc Gc

Specifications (models and key data)

• SD25489AP (Ex68) | Ø 254 x 89 mm / 10 x 3.5 in | Max airflow 31.14 ~ 9.91 m³/min / 1,100 ~ 350 CFM | Electronically Protected
• SD17551SRAP (Ex67) | Ø 172 x 51 mm / 6.7 x 2 in | Max airflow 16.99 ~ 14.72 m³/min / 600 ~ 520 CFM | Electronically Protected
• SD17551RAP (Ex67)(MS) | Ø 172 x 51 mm / 6.7 x 2 in | Max airflow 17.27 ~ 4.30 m³/min / 610 ~ 152 CFM | Electronically Protected
• SD17551SAP (Ex67)(MS) | 172 x 152 x 51.6 mm / 6.7 x 2 in | Max airflow 17.27 ~ 5.29 m³/min / 610 ~ 187 CFM | Electronically Protected
• SD17251SAP (Ex67) | 172 x 152 x 51.6 mm / 6.7 x 2 in | Max airflow 12.34 ~ 9.34 m³/min / 436 ~ 330 CFM | Electronically Protected
• SD1238SAP (Ex67) | 120 x 120 x 38 mm / 4.7 x 1.5 in | Max airflow 8.49 ~ 4.95 m³/min / 300 ~ 175 CFM | Electronically Protected
• SD1238SPT (Ex67)(MS) | 120 x 120 x 38 mm / 4.7 x 1.5 in | Max airflow 7.07 ~ 5.94 m³/min / 250 ~ 210 CFM | Electronically Protected
• SD1238SPT (Ex67) | 120 x 120 x 38 mm / 4.7 x 1.5 in | Max airflow 8.07 ~ 6.08 m³/min / 285 ~ 215 CFM | Electronically Protected
• SD1238PT (Ex67)(MS) | 120 x 120 x 38 mm / 4.7 x 1.5 in | Max airflow 5.09 ~ 1.92 m³/min / 180 ~ 68 CFM | Electronically Protected
• SD1225SPT (Ex67)(MS) | 120 x 120 x 25 mm / 4.7 x 1 in | Max airflow 5.66 ~ 4.53 m³/min / 200 ~ 160 CFM | Electronically Protected
• SD1225SPT (Ex67) | 120 x 120 x 25 mm / 4.7 x 1 in | Max airflow 4.95 ~ 3.02 m³/min / 175 ~ 107 CFM | Electronically Protected
• SD1225PT (Ex67)(MS) | 120 x 120 x 25 mm / 4.7 x 1 in | Max airflow 3.39 ~ 1.75 m³/min / 120 ~ 62 CFM | Electronically Protected
• SD9238SPT (Ex67) | 92 x 92 x 38 mm / 3.6 x 1.5 in | Max airflow 5.23 ~ 3.68 m³/min / 185 ~ 130 CFM | Electronically Protected
• SD9238PT (Ex67) | 92 x 92 x 38 mm / 3.6 x 1.5 in | Max airflow 4.75 ~ 2.20 m³/min / 168 ~ 78 CFM | Electronically Protected
• SD9225SPT (Ex67) | 92 x 92 x 25.4 mm / 3.6 x 1 in | Max airflow 3.17 ~ 1.61 m³/min / 112 ~ 57 CFM | Electronically Protected
• SD9225PT (Ex67) | 92 x 92 x 25 mm / 3.6 x 1 in | Max airflow 1.86 ~ 0.70 m³/min / 66 ~ 25 CFM | Electronically Protected
• SD8038SPT | 80 x 80 x 38 mm / 3.1 x 1.5 in | Max airflow 3.79 ~ 1.86 m³/min / 134 ~ 66 CFM | Electronically Protected
• SD8038PT (Ex67) | 80 x 80 x 38 mm / 3.1 x 1.5 in | Max airflow 3.73 ~ 1.41 m³/min / 132 ~ 50 CFM | Electronically Protected
• SD8025SPT (Ex67) | 80 x 80 x 25 mm / 3.15 x 1 in | Max airflow 2.97 ~ 1.21 m³/min / 105 ~ 43 CFM | Electronically Protected
• SD8025PT (Ex67) | 80 x 80 x 25 mm / 3.15 x 1 in | Max airflow 1.81 ~ 0.62 m³/min / 64 ~ 22 CFM | Electronically Protected
• SD7025PT (Ex67) | 70 x 70 x 25 mm / 2.75 x 1.0 in | Max airflow 2.12 ~ 0.67 m³/min / 75 ~ 24 CFM | Electronically Protected
• SD6038PT (Ex67) | 60 x 60 x 38 mm / 2.36 x 1.5 in | Max airflow 2.54 ~ 1.13 m³/min / 90 ~ 40 CFM | Electronically Protected
• SD6025SPT (Ex67) | 60 x 60 x 25 mm / 2.36 x 1.0 in | Max airflow 1.78 ~ 0.99 m³/min / 63 ~ 35 CFM | Electronically Protected
• SD6025PT (Ex67) | 60 x 60 x 25 mm / 2.36 x 1.0 in | Max airflow 1.27 ~ 0.39 m³/min / 45 ~ 14 CFM | Electronically Protected

Notes

• We reserve the right to change the data without further notice.
• Data performance subject to 10% tolerance.

Technical characteristics

• Product family: Explosion Proof (ATEX) DC fans — multiple models and sizes.
• Standards: UL60079-0, UL60079-7, CSA C22.2 No.60079-0, CSA C22.2 No.60079-7.
• Certification class: Class 1, Zone 2, AEx ec IIc Gc.
• Protection type: Electronically Protected across listed models.
• Available sizes: from 60 x 60 x 25 mm up to Ø254 x 89 mm.
• Max airflow ranges: approximately 0.39 m³/min up to 31.14 m³/min (approx. 14 CFM up to 1,100 CFM) depending on model.
• Representative models: SD25489AP, SD17551SRAP, SD17551RAP (MS), SD17551SAP (MS), SD17251SAP, SD1238SAP, SD1238SPT (MS), SD1238SPT, SD1238PT (MS), SD1225SPT (MS), SD1225SPT, SD1225PT (MS), SD9238SPT, SD9238PT, SD9225SPT, SD9225PT, SD8038SPT, SD8038PT, SD8025SPT, SD8025PT, SD7025PT, SD6038PT, SD6025SPT, SD6025PT.
