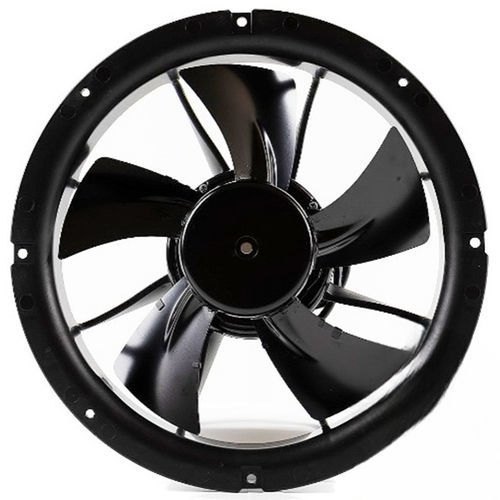

ATEX fan SE series

axialexplosion-proofcooling

Overview
Explosion-proof EC axial fans for ventilation and cooling in gas-hazardous industrial environments. Models cover a range of axial sizes and airflow capacities suitable for control cabinets, enclosures and general ventilation applications while meeting ATEX requirements.

Certification
ATEX certificate issued according to: 2014/34/EU Directive - Annex III Module B. Equipment marking: Ex II 3G Ex ec IIc T4 Gc.

Available models and specifications (table)

• SE280AN (Ex67) — 280 x 280 x 90 mm / 11 x 11 x 3.5 in — Max airflow: 32.28 m3/min / 1,140 CFM — Electronically protected.
• SE254AP (Ex68) — Ø254 x 89.5 mm / Ø10 x 3.5 in — Max airflow: 23.50 m3/min / 830 CFM — Electronically protected.
• SE172SAP (Ex67) — 172 x 151.8 x 51.6 mm / 6.7 x 2 in — Max airflow: 6.22 m3/min / 220 CFM — Electronically protected.
• SE1238PT (Ex67)(E) — 119 x 119 x 38 mm / 4.7 x 1.5 in — Max airflow: 3.17 m3/min / 112 CFM — Electronically protected.
• SE1225PT (Ex67) — 120 x 120 x 25 mm / 4.7 x 1 in — Max airflow: 2.26 m3/min / 80 CFM — Electronically protected.
• SE938PT (Ex67)(E) — 92 x 92 x 38 mm / 3.6 x 1.5 in — Max airflow: 2.43 m3/min / 86 CFM — Electronically protected.
• SE925PT (Ex67) — 92 x 92 x 25.2 mm / 3.6 x 1 in — Max airflow: 1.58 m3/min / 56 CFM — Electronically protected.
• SE838PT (Ex67) — 80 x 80 x 38 mm / 3.1 x 1.5 in — Max airflow: 1.69 m3/min / 60 CFM — Electronically protected.
• SE825PT (Ex67) — 80 x 80 x 25 mm / 3 x 1 in — Max airflow: 1.18 m3/min / 42 CFM — Electronically protected.

• We reserve the right to change the data without further notice.
• Data performance subject to ±10% tolerance.

Technical characteristics / Caractéristiques techniques

• Certification: ATEX (2014/34/EU Directive - Annex III Module B).
• Equipment marking: Ex II 3G Ex ec IIc T4 Gc.
• Protection type (for listed models): Electronically protected.
• Model range included: SE280AN, SE254AP, SE172SAP, SE1238PT, SE1225PT, SE938PT, SE925PT, SE838PT, SE825PT.
• Size range: from 80 x 80 x 25 mm up to 280 x 280 x 90 mm.
• Airflow range (typical per table): 1.18 to 32.28 m3/min (approx. 42 to 1,140 CFM).
• Performance tolerance: ±10% subject to testing conditions.
• Datasheets available for individual models (model-specific PDF datasheets referenced on the page).
