air blower / radial / single-stage / direct-drive
S-HP series

{{requestButtons}}

Characteristics

  • Type:

    air

  • Technology:

    radial

  • Number of stages:

    single-stage

  • Other characteristics:

    direct-drive, high-pressure

  • Flow rate:

    Max.: 64 m³/min (2,260 ft³/min)

    Min.: 8 m³/min (283 ft³/min)

  • Operating pressure:

    Max.: 15,250 Pa (2.212 psi)

    Min.: 5,200 Pa (0.754 psi)

  • Nominal power:

    Max.: 20 kW (27.19 hp)

    Min.: 1.1 kW (1.5 hp)

Description

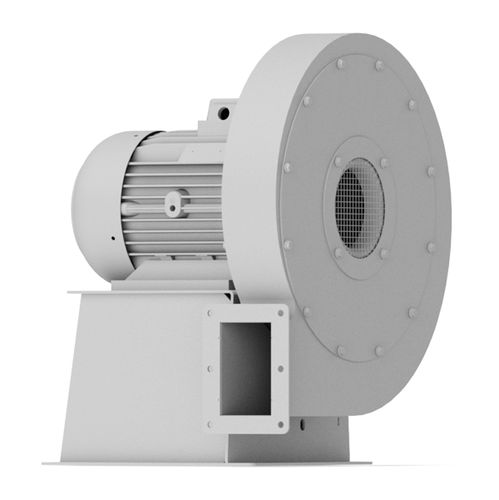

Elektror presents the S-HP high pressure blowers. They provide a flow rate up to 64 m³/min and a pressure difference up to 15,250 Pa. The wear-free, direct drive works via offset (FU) or mounted (FUK) frequency converter. They accelerates up to 105 Hz (approx. 6,200 rpm). The housing is made of steel or stainless steel, impellers primarily bent backwards and are made of stainless steel or aluminium. In stainless steel execution: Niro-shaft and maximum corrosion-resistance. Variable connection possibilities.
