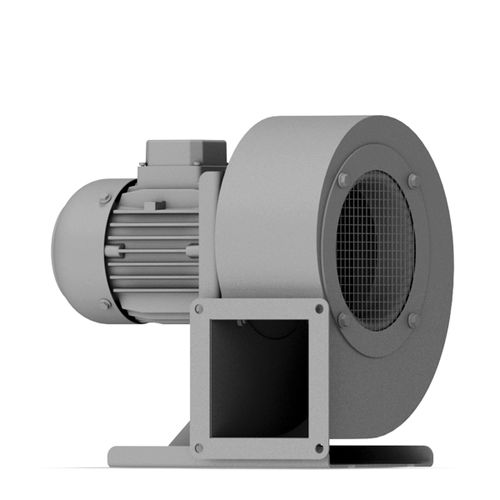

air blower / radial / single-stage / low-pressure
S-LP series

{{requestButtons}}

Characteristics

  • Type:

    air

  • Technology:

    radial

  • Number of stages:

    single-stage

  • Other characteristics:

    low-pressure

  • Flow rate:

    Min.: 8 m³/min (283 ft³/min)

    Max.: 115 m³/min (4,061 ft³/min)

  • Operating pressure:

    Min.: 575 Pa (0.083 psi)

    Max.: 3,050 Pa (0.442 psi)

  • Nominal power:

    Min.: 0.18 kW (0.24 hp)

    Max.: 11 kW (14.96 hp)

Description

Elektror presents the S-LP low pressure blowers. They provide a flow rate up to 115 m³/min and a total pressure difference up to 3,050 Pa. The housing is made of steel or stainless steel, drum impellers bent forward and are made of galvanized sheet steel or stainless steel. In stainless steel execution: Niro-shaft and maximum corrosion-resistance. Variable connection possibilities.
