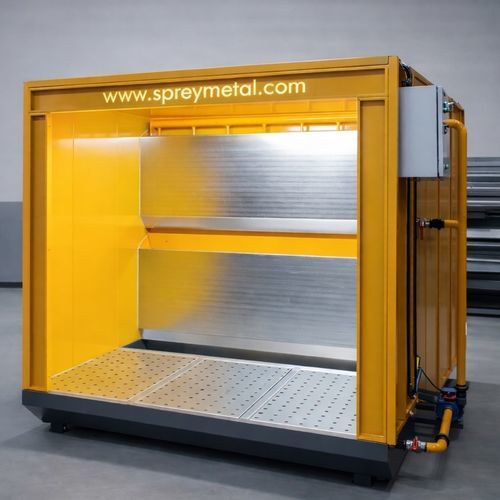

Open paint booth

for steel constructionwaterautomatic

Overall Machine Dimensions: - • - Width: 2000 mm - • - Depth: 2000 mm - • - Height: 2200 mm Maximum Workpiece Dimensions: - • - Width: 1800 mm - • - Depth: 1000 mm - • - Height: 1400 mm We offer a wide range of water curtain wet paint booths designed to meet your needs in an economical and efficient manner. With its experienced technical team, Spray Metal provides project-specific solutions and prioritizes customer satisfaction at every stage. Technical Specifications Construction Options: - • - Galvanized steel - • - Stainless steel - • - Stainless steel water tank and water curtain, with all other sections galvanized System Features: - • - Hinged (openable) water curtain system for easy maintenance - • - Properly sized pipes, valves, and removable washing nozzles to prevent clogging - • - Sealed-type fluorescent lighting fixtures - • - High-efficiency paint particle capture through the water curtain and air washing system - • - Eliminator separator integrated into the air washing system to trap water droplets and minimize environmental impact Operational Compatibility: - • - Suitable for manual and conveyorized (continuous) systems - • - Electrical control panel integrated onto the booth, delivered complete with all wiring Water Circulation System: - • - Standard soft Teflon-packed pump - • - Optional mechanical seal pump available
