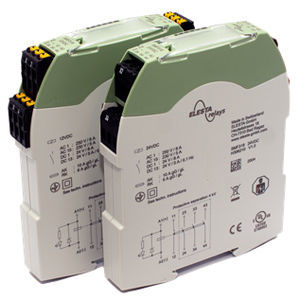

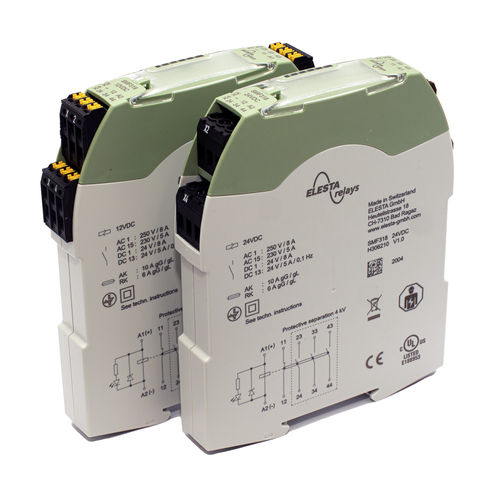

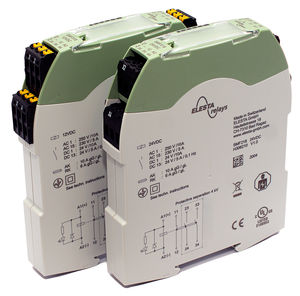

DIN rail mounted relay module SMF5

electromechanicalDCcompact

The relay module is designed for installation on mounting rail (35 mm). It contains a 4-pole relay with forcibly guided contacts. In addition to a protective circuit for the relay coil, the module is equipped with an LED as a status indicator. Furthermore, different terminal variants are available. Integration in safety applications according toIEC/EN 62061, ISO/EN 13849 possible. - Connection variants: Screw terminal SMF328, SMF418 or Spring terminal SMF329, SMF419 - Contact mounting: SMF328/329: 3 NO + 2 NC bzw. SMF418/419: 4 NO + 1 NC - Switching current range: 3 mA to 8 A - Coil voltages: 5 VDC to 110 VDC - Design (LxWxH): 100 x 17,5 x 120 - Approvals: cULus Areas of application: Access control, interfaces, elevators, escalators, transportation, robots, machine tools and railway applications
