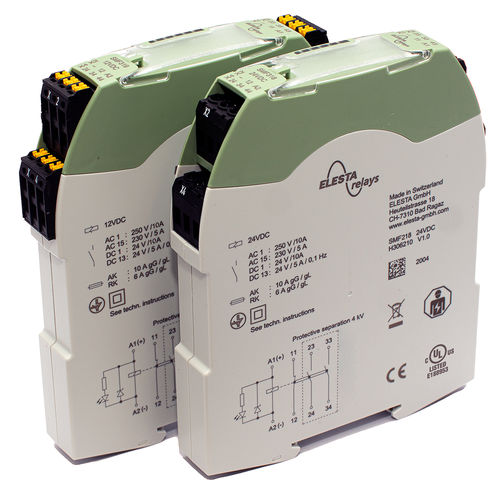

DC relay module SMF3ACelectromechanicalDIN rail mounted
Add to favorites
Compare this product
Characteristics
- Type
- DC, AC, electromechanical
- Mounting
- DIN rail mounted
- Other characteristics
- compact
- Load current
Min.: 3 mA
Max.: 10,000 mA
- Load voltage
Min.: 5 V
Max.: 110 V
Description
The relay module is designed for installation on mounting rail (35 mm). It contains a 3-pole relay with forcibly guided contacts. In addition to a protective circuit for the relay coil, the module is equipped with an LED as a status indicator. Furthermore, different terminal variants are available.
- Connection variants
Screw terminal SMF218 or Spring terminal SMF219
- Contact mounting
SMF218/219: 2 NO + 1 NC
- Switching current range
3 mA to 10 A
- Coil voltages
5 VDC to 110 VDC
- Design (LxWxH)
100 x 17,5 x 120
- Approvals
cULus
Areas of application:
Access control, interfaces, elevators, escalators, transportation, robots, machine tools and railway applications
Catalogs
SMF3 Series
1 Pages
