DIN rail mounted relay module SMD4electromechanicalDC
Add to favorites
Compare this product
Characteristics
- Type
- DC, electromechanical
- Mounting
- DIN rail mounted
- Load current
Min.: 3 mA
Max.: 8,000 mA
- Load voltage
Min.: 5 V
Max.: 110 V
Description

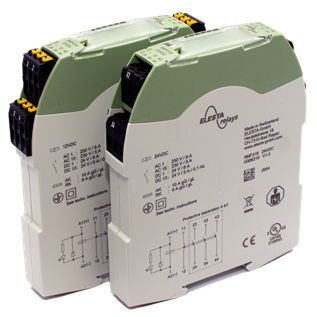

The relay module is designed for mounting on a mounting rail (35 mm). It contains a 4-pole relay with forcibly guided contacts. In addition to a protective circuit for the relay coil, the module is equipped with a status indicator LED. Integration into safety applications according to IEC/EN 62061, ISO/EN 13849 is possible. The user is responsible for correct integration! Furthermore, various connection terminal variants are available.
- Connection variants: Screw terminal SMD318 or spring terminal SMD319
- Contact mounting: SMD318/319: 3 NO + 1 NC
- Design (LxWxH): 100 x 17,5 x 120
- Approvals: cULus
Areas of application:
Access control, interfaces, elevators, escalators, transportation, robots, machine tools and railway applications
