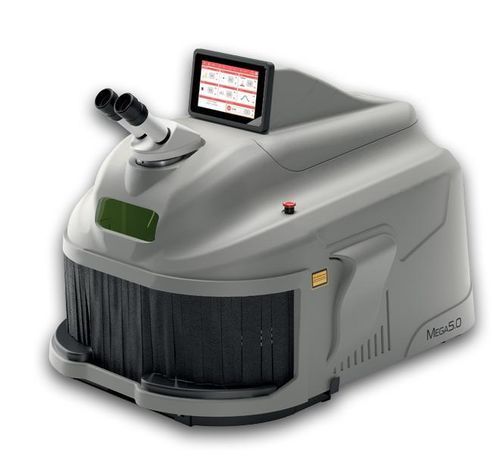

Nd:YAG laser welding machine MEGA 5.0

manualbenchtopfor gold

Product overview
MEGA 5.0 and MEGA 5.0 3D are high-power, full-size benchtop laser welders designed for jewelry workshops and industrial production at medium to large scale. They feature a spacious welding chamber and SMSP technology for precise, uniform, high-quality welds. The 3D model adds a stereoscopic viewer for improved visual comfort and accuracy.

Main features
Full-size MEGA 5.0 suitable for welding objects of various dimensions thanks to its large chamber. Dual cooling (water + air) supports intensive use in elevated-temperature environments. SMSP technology enables precise control of laser spot diameter to improve weld quality and repeatability. The MEGA 5.0 3D retains standard features and integrates a 3D Vision stereoscopic viewer (eyepiece-free) for high-resolution observation and reduced eye strain.

Applications

• Welding of precious metals: gold, platinum, silver, palladium, titanium
• Repair and restoration of antique jewelry and mounted settings
• Repairs on watches, eyeglass frames and other small metal components
• Welding with filler materials without need for post-treatment cleaning
• Repair of porosity and micro-cracks in castings

High-level performances

• Laser source: Nd:Ce:YAG 1064 nm
• Touchscreen: 7" capacitive display
• Cooling system: water and air
• Gas inlet: Argon
• Power supply (standard): 230 V AC, 50/60 Hz (110 V available on request)
• Type: benchtop / desktop
• Warranty: 36 months

Variations / MEGA 5.0 technical features

• Model: MEGA 5.0
• Average power: 90 W
• Peak power: 10 kWp
• Maximum energy: 245 J
• Maximum frequency: 40 Hz
• Impulse time: 0.1 - 25 ms
• Spot diameter: 0.2 - 2.0 mm (0.05 or 0.1 mm optional)
• Microspot (0.05 or 0.1 mm): optional
• Spot setting: motorized
• Wave programs: 7 preset pulse shapes
• New SMSP waveform: yes
• Microscope 10X: Leica
• 3D vision system: optional (stereoscopic viewer for 3D version)
• Camera on display: yes
• External control: 7" Color Touch Screen
• Memories (cell stored): 100
• HDMI: yes
• Water cooling system: double / 4 l
• Compressed air nozzle: yes
• Argon nozzle: yes
• Type (variant table): desktop
• Power supply (variant table): 230 V AC, 50/60 Hz (110 on request) - 2.2 kW
• Dimensions (cm): 58 x 85 x 60
• Weight (kg): 43

Technical specifications

• Laser: Nd:Ce:YAG, 1064 nm
• Average power: 90 W
• Peak power: 10 kWp
• Maximum energy: 245 J
• Max frequency: 40 Hz
• Impulse duration: 0.1 - 25 ms
• Spot diameter range: 0.2 - 2.0 mm (microspot 0.05 or 0.1 mm optional)
• Spot adjustment: motorized
• Pulse/wave control: 7 preset pulse shapes + SMSP waveform
• Operator interface: 7" capacitive touchscreen (external control), camera on display, HDMI
• Vision options: Leica 10X microscope; optional 3D stereoscopic viewer (3D version)
• Cooling: water and air (double water cooling / 4 l)
• Gas: Argon inlet and Argon nozzle
• Auxiliaries: compressed air nozzle
• Memory: 100 stored programs/cells
• Power supply: 230 V AC, 50/60 Hz (110 V on request) — nominal consumption ~2.2 kW
• Type: benchtop / desktop laser welder
• Dimensions (W x H x D): 58 x 85 x 60 cm
• Weight: 43 kg
• Warranty: 36 months
