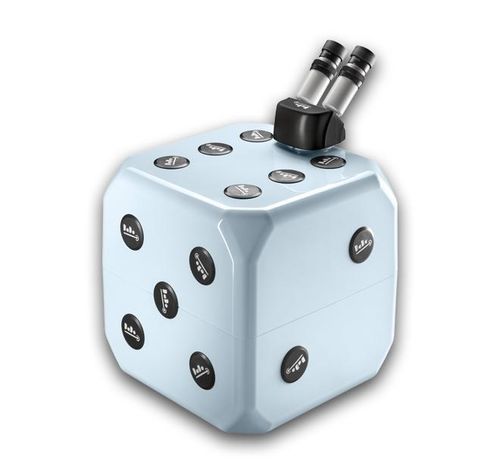

Nd:YAG laser welding machine DADO

impulsemanualbenchtop

Overview
DADO 2.0 is a compact desktop laser welder intended for small jewelry and dental laboratories. The 2.0 version increases peak power and adds a continuous welding mode while retaining an ultra-compact footprint (34 x 34 x 34 cm), 15 kg weight and integrated liquid cooling.

Product description

• Entry-level desktop laser welder optimized for jewelry, goldsmith and small dental workshops.
• Minimalist design with mobile app control (Android/iOS) and an intuitive user interface.
• DADO 2.0 adds dedicated firmware, higher peak power and continuous welding mode for repetitive tasks.
• Integrated liquid cooling (single 1 l circuit) for stable operation during prolonged sessions.
• Optional argon gas nozzle and standard 10X microscope for precise work.

Applications

• Welding of gold, platinum, palladium and dental alloys.
• Repair and assembly of small jewelry pieces.
• Repairs on eyeglasses, small precision parts and fittings.
• Welding of dental prosthetics (bridges, frameworks) and orthodontic components.
• Micromachining and rapid welding of thin or delicate metallic components for craft and model making.

High-level performances

• Laser source: Nd:Ce:YAG — 1064 nm
• Average power: 10 W
• Peak power: Dado: 1.8 kW | DADO 2.0: 2.5 kW
• Maximum frequency: Dado: 1.5 Hz | DADO 2.0: 4 Hz
• Pulse duration: 3 ms
• Spot diameter: 0.2 ÷ 1.5 mm
• Cooling: integrated liquid cooling (single / 1 l)
• External control: mobile app (Android/iOS)
• User interface: simple and intuitive; continuous welding mode (DADO 2.0)
• Power supply: 230 V AC, 50/60 Hz (110 V on request)
• Type: desktop benchtop unit
• Optional: argon gas nozzle

Characteristics / technical specifications

• Model designation: DADO 2.0
• Laser source and wavelength: Nd:Ce:YAG 1064 nm
• Average power: 10 W
• Peak power: Dado: 1.8 kW; DADO 2.0: 2.5 kW
• Maximum frequency: Dado: 1.5 Hz; DADO 2.0: 4 Hz
• Pulse / impulse time: 3 ms
• Spot diameter: 0.2 - 1.5 mm
• Spot setting: manual
• Microscope: 10X (standard)
• External control: mobile app (Android/iOS)
• Cooling system: integrated liquid cooling — single / 1 l
• Argon nozzle: optional
• Power supply: 230 V AC, 50/60 Hz (110 V on request); also stated as 110/230 V AC – 50/60 Hz – 8A
• Dimensions: 34 x 34 x 34 cm
• Weight: 15 kg
• Type: desktop benchtop unit
• Designed for: precious metals and dental alloys; suitable for jewelry, goldsmith, dental and small craft workshops
