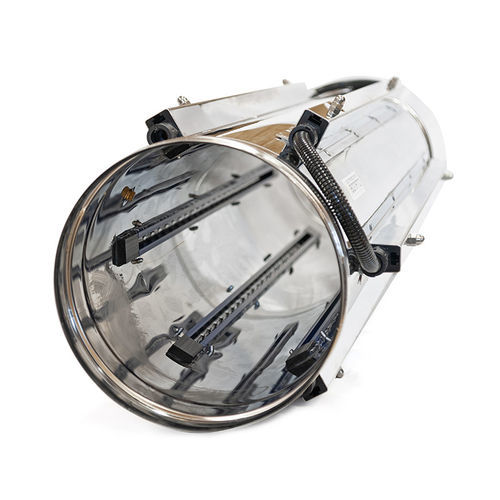

Anti-static tube AT-01
pneumaticstainless steelmetal

Anti-static tube - AT-01 - Elettromeccanica Bonato sas - pneumatic / stainless steel / metal
Anti-static tube - AT-01 - Elettromeccanica Bonato sas - pneumatic / stainless steel / metal
Anti-static tube - AT-01 - Elettromeccanica Bonato sas - pneumatic / stainless steel / metal - image - 2
Anti-static tube - AT-01 - Elettromeccanica Bonato sas - pneumatic / stainless steel / metal - image - 3
Add to favorites
Compare this product
Go to the Elettromeccanica Bonato sas website for more information

Characteristics

Use
pneumatic
Material
stainless steel, metal
Other characteristics
anti-static
Inner diameter

Min.: 50 mm
(1.969 in)

Max.: 500 mm
(19.685 in)

Temperature

Min.: 0 °C
(32 °F)

Max.: 60 °C
(140 °F)

Description

The AT-01 antistatic tube is designed to neutralize static charges from materials transported via pneumatic systems. Installing the antistatic tube prevents pipe clogging caused by the agglomeration of electrostatically charged material, resulting in significant savings in machine downtime. We can manufacture tubes in various diameters, in both stainless steel and galvanized metal, with different connections according to your requirements. The number of antistatic bars connected in line will depend on the tube diameter. Lengths - 500-2000 mm Diameter - 50-500 mm Operating temperature - 0-60°C Material - Galvanized iron or stainless steel Operating voltage - 6,5 KV Power supply - PS1WR, AF2-4WR

Catalogs

AT-01
AT-01
2 Pages
AG-01
AG-01
2 Pages
IF-01
IF-01
2 Pages
