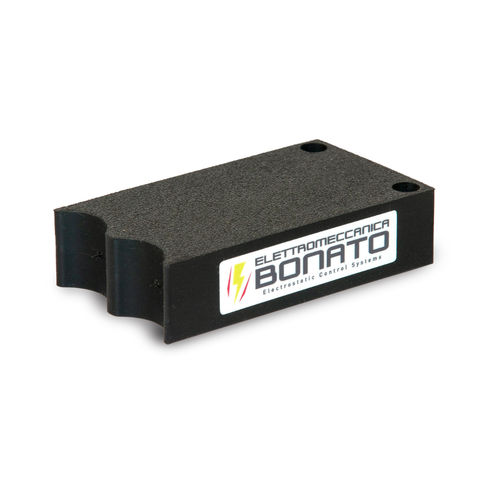

Ionizing head IH-DC

The IH-DC ionizing head is a compact antistatic bar with an integrated 24Vdc power supply. Thanks to its compact design, it is ideal for use in all applications where space is limited. It does not require an external power supply unit; it simply needs to be powered at 24V via the dedicated 4-pole M8 connector. It is equipped with a LED indicator providing device status information: Green = operating, Red = fault, Flashing Blue = standby, Purple = cleaning required. All electronic components are epoxy resin-encapsulated to ensure safety and durability, featuring shockless tungsten emitters connected to high voltage via resistors. Power supply - Integrated 12-24 Vdc Working distance - 20-150 mm Ambient temperature - 0°C-70°C, maximum humidity 65% Operating voltage - 7000 V Protection rating - IP 67
