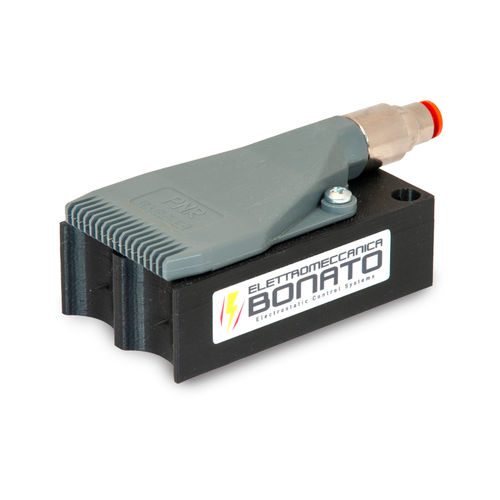

Flat ionizing head IH-DC-AN

The IH-DC-AN ionizing head is a 24Vdc integrated power supply ionizing head with a flat compressed air nozzle. Thanks to its compact design, it is ideal for use in all applications where space is limited. It does not require an external power supply box, but is ready for use via only an M8 power cable. It is equipped with a LED indicator that provides information on the status of the device: Green= operating, Red= fault, Flashing Blue= standby, Purple= cleaning required. All electronic components are impregnated in epoxy resin to ensure safety and durability, with shock-proof tungsten emitters connected to high voltage via resistors. Working distance - 20-1000 mm Operating voltage - 7000 V Power supply - Integrated 12-24 Vdc Ambient temperature - 0°C-70°C, maximum humidity 65% Protection rating - IP 67
