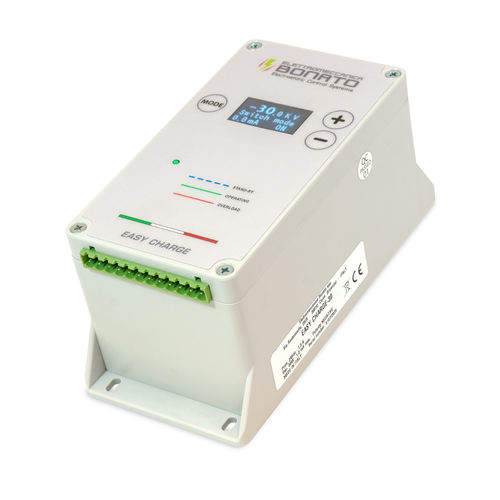

Electrostatic charge generator EASY CHARGE-30

currentvoltageanalog

The Easy Charge-30 charging generator generates adjustable high voltage between 0 and 30 kV and an adjustable current between 0 and 1.0 mA. Its controls are highly intuitive and easy for the operator to use, thanks in part to the OLED display showing both instantaneous voltage and current as well as the operating mode. Furthermore, the generator can be controlled remotely via the analog remote control function; it is available with positive or negative charge upon request and features 2 high-voltage outputs. Material - ABS Weight - 1,3 kg Connections - 2 Display - OLED Operating temperature - 0-60°C Primary voltage - 24V DC, 1.5 A max. Consumption - 30 W max Secondary output - 0 – 30 kV DC Secondary current - Max. 1 mA up to 20 kV; max. 0.6 mA at 30 kV Polarity - Positive or negative Features - Voltage and current control, overload indicator. Analog remote control function, control keypad
