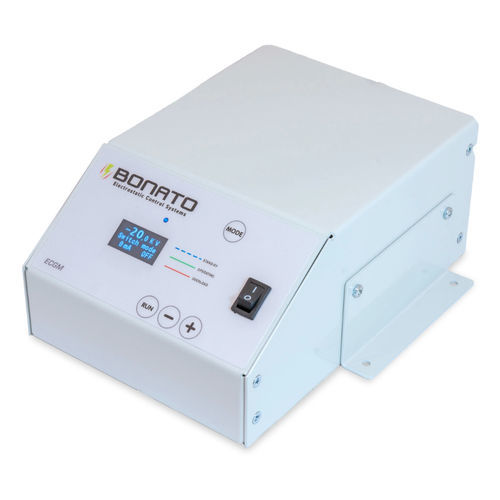

Electrostatic charge generator ECGM-30

currenthigh-voltage

The ECGM-30 charging generator generates adjustable high voltage between 0 and 30 kV and an adjustable current between 0 and 1.0 mA. Its controls are highly intuitive and easy to use, thanks to the OLED display showing instantaneous voltage, current, and operating mode. Additionally, the generator can be remotely controlled via the analog remote control function; it is available with positive or negative charge upon request and features 2 high-voltage outputs. Frame material - Painted metal Weight - 3,5 Kg Connections - 2 Display - OLED Operating temperature - 0-60°C Primary voltage - 100-240Vac, 1.0 A max.; 50-60Hz Consumption - 30 W max Secondary output - 0 – 20 kV DC Secondary current - 1 mA at 20 kV – 0.7 mA at 30 kV Polarity - Positive or negative Features - Voltage and current control, overload indicator. Analog remote control function, control keypad
