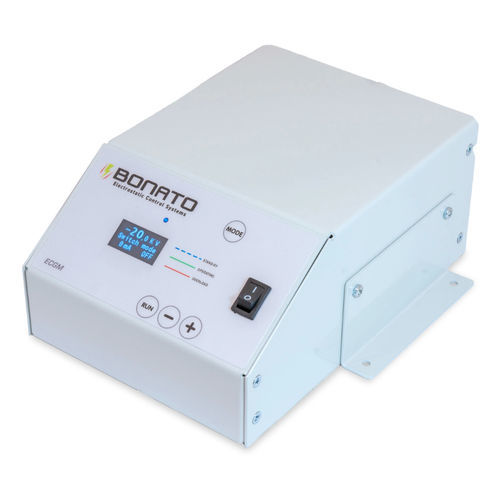

Electrostatic charge generator ECGM-20

currentvoltagehigh-voltage

The ECGM-20 charging generator produces adjustable high voltage between 0 and 20 kV and current between 0 and 1.0 mA. Its controls are highly intuitive and easy to use, featuring an OLED display that shows instantaneous voltage, current, and operating mode. Furthermore, the generator can be remotely controlled via an analog function and is available with positive or negative charge upon request, with 2 high-voltage outputs. Frame material - Painted metal Weight - 3,5 Kg Connections - 2 Display - OLED Operating temperature - 0-60°C Primary voltage - 100-240Vac, 1.0 A max.; 50-60Hz Consumption - 30 W max Secondary output - 0 – 20 kV DC Secondary current - 1 mA at 20 kV – 0.7 mA at 30 kV Polarity - Positive or negative Features - Voltage and current control, overload indicator. Analog remote control function, control keypad
