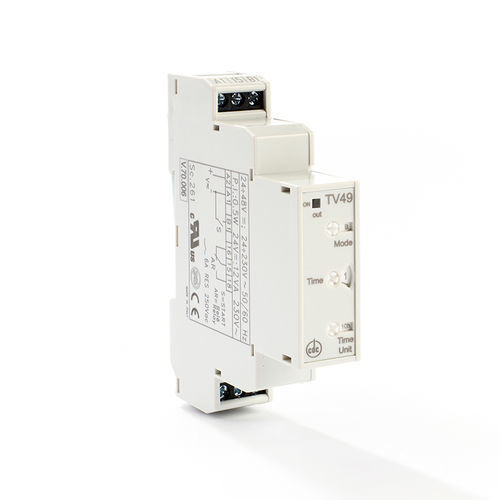

Electronic timer TV49

sequencemulti-functionDIN rail

Electronic timer with analogue setting, one output. Multirange, multivoltage, multifunction. Through the rotary selectors on the front of the timer is possible to select : -one from available 10 functions with manual Start switch and 4 functions with automatic “start on applied voltage” (with the connection of A1-B1) -one from available 10 full scale time ranges . Through another selector it is possible to set the required time setting. Relay working modes following the selected function. The led on the front indicates Supply voltage connected (slow flash rate ), time sequence running (fast flash rate), time sequence finished (continuously ON)
