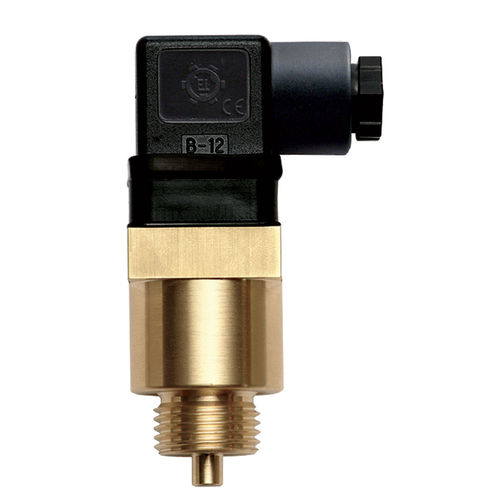

SPDT temperature switch EBCG 1/2G 3/8IP65
Add to favorites
Compare this product
Characteristics
- Contact type
- SPDT
- Process connection
- G 1/2, G 3/8
- Protection level
- IP65
- Temperature
Max.: 80 °C
(176 °F)Min.: -10 °C
(14 °F)- Switching power: current
1 A
- Switching power : voltage
24 V
Description
Switch rating - 1 A / 24 Vac
Electrical connection - DIN 43650 – PG09
Accuracy - ± 5°C
Max. differential DT - 16°C
Contact - SPDT
Body material - Brass
Dimensions - Body 30 AF – Height 90 mm
Catalogs
Temperature switches
13 Pages
