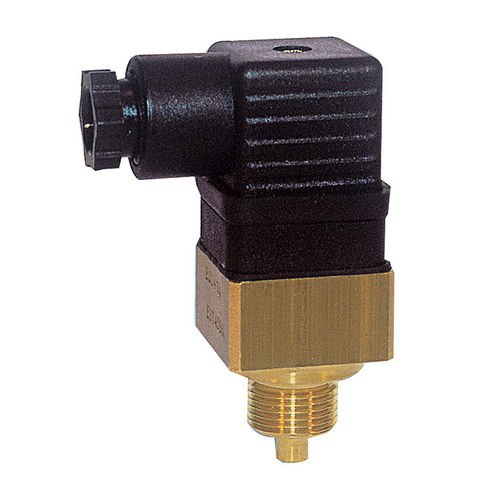

Differential temperature switch EBTNONCG 1/2
Add to favorites
Compare this product
Characteristics
- Type
- differential
- Contact type
- NC, NO
- Process connection
- G 1/2, G 3/8, NPT 1/4
- Protection level
- IP65
- Temperature
Max.: 120 °C
(248 °F)Min.: -20 °C
(-4 °F)- Switching power: current
10 A
- Switching power : voltage
250 V
- Process temperature
Max.: 105 °C
(221 °F)Min.: 25 °C
(77 °F)
Description
Temperature switches with fixed set-point and din-plug
Electrical connection - DIN 43650 – PG09
Accuracy - ± 5°C
Max. differential DT - 16°C
Max. pressure - 300 bar
Body material - Brass
Dimensions - Body 30 AF – Height 80 mm
Catalogs
Temperature switches
13 Pages
