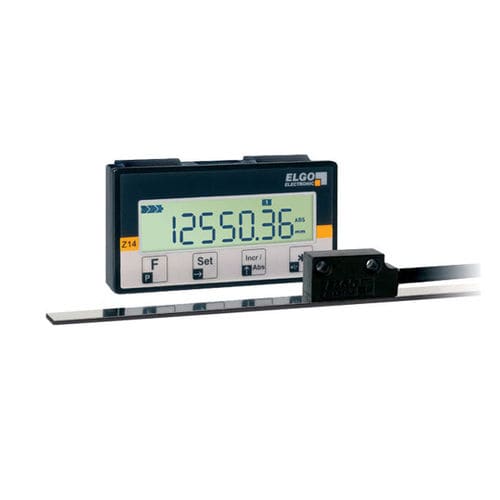

Position indicator IZ14E

LCD displaypanel-mountbattery-powered

- Small design - 7-digit LCD display - Sign, battery status, units and „°“ symbol - Configurable display modes: mm / m / inch with fraction display - Adjustable counting direction, decimal point and muliplication factor - Adjustable reference value - Key lock - Simple assembly due to snap-in housing - 3 adjustable tool-offsets / can individually be activated via parameter - Switch-over between incremental and absolute measuring - Optional 1 external input for special functions (5… 30 V) - Sensor cable length up to 2.0 m - Supply via built-in battery holder 2 x AAA batteries or via an external battery case (e.g. 1 x C [1.5 V] or 2 x C [3 V]
