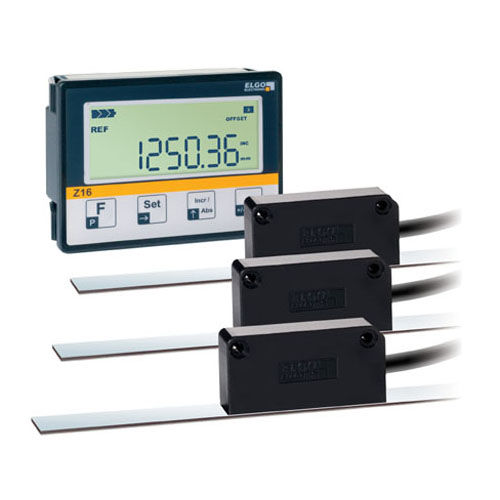

Position indicator AZ16E-300
LCD displaypanel-mountbattery-powered

position indicator
position indicator
Add to favorites
Compare this product


Characteristics

Measured value
position
Display
LCD display
Type
panel-mount
Other characteristics
battery-powered
Applications
for encoders

Description

- 7-digit LCD display - Adjustable reference value - Sign, battery status, units and ,,° '' - symbol - Configurable display modes: mm/inch incl. fraction display - Adjustable counting direction - Adjustable decimal point and multiplicator factor - Key lock - Easy mounting via snap-in housing (compatible to Z16) - Up to three external magnetic sensors (switchable) - Switch-over between incremental and absolute measuring - 3 adjustable tool-Offsets - Optional 2 external inputs for special functions via RJ45 - Optional 2 external outputs via RJ45 - Possible interfaces RS232/RS422/RS485/868 MHz
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
