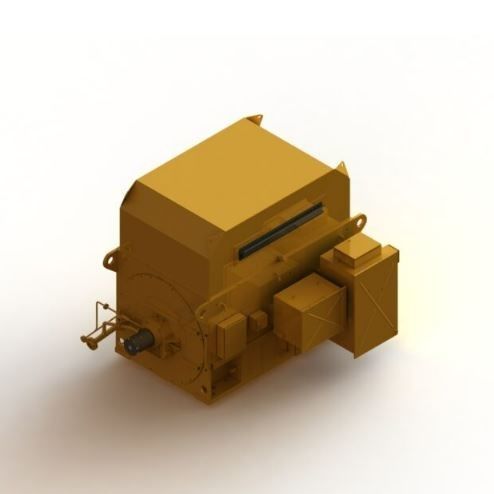

High-voltage motor HKMasynchronousthree-phasesquirrel-cage rotor
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, three-phase
- Configuration
- squirrel-cage rotor
- Protection class
- IP55, explosion-proof, IECEx
- Cooling mechanism
- air-cooled, water-cooled
- Applications
- for marine applications, for nuclear applications, maritime industry
- Other characteristics
- NEMA, high-voltage, standard, IEC
- Power
35,000 kW
(47,586.74 hp)- Rotational speed
3,600 rpm
(22,619.4671 rad.min-1)
Description
• Possible execution standard IEC 60034 or according to NEMA
• MG1 special construction & certification for explosion-proof (ATEX, IECEX), maritime und nuclear applications
• Cooling technique IC81W / TEAWC (totally enclosed, air-water cooled)
• IEC size 355 – 1400
• Rotational-speed range in operation with VFD up to 3600 r/min
• Direct starter (DOL), soft starter and VFD
• Voltage up to 15.000 V
• Standard design IM B3 (IM1001), IM V1 (IM3011), special design on demand
• Protection type up to IP55
• Insulation class F or H
VIDEO
