Synchronous electrical generator E-Pack DS

voltageair-cooledwater-cooled

Overview
Comprehensive range of low- and high-voltage electric motors (400 V to 15 kV) from 37 kW to 35,000 kW and synchronous generators up to 15 kV and 65,000 kVA (65 MVA). ELIN Motoren supplies non-safety-classified and safety-classified machines in tailored configurations. Equipment can be qualified for accident conditions (LOCA, ANLE), seismic events, and degraded ambient conditions including radiation exposure, by calculation and/or testing to meet regulatory and reactor-specific requirements.

Machines for normal power plant operation as well as for accident conditions

• Drives for primary coolant pumps / main coolant pumps
• Feedwater pumps, condensate pumps, startup feedwater pumps
• Main and auxiliary cooling water pumps
• Motor/generator sets
• Auxiliary drives in nuclear and conventional islands (condenser vacuum pumps, closed cooling-circuit pumps, feedwater and condensate auxiliary pumps, bus duct fans, HVAC fans, turbine gear motors)
• Safety-related drives such as containment heat removal pumps, safety injection pumps, boric injection pumps, and emergency diesel generator drives

Our expertise in nuclear power plant technology

• Custom adaptation of machine designs to meet specific application requirements
• Extensive knowledge of nuclear codes and standards worldwide
• Proven analytical and qualification methods for accident and seismic conditions
• Compliance with strict documentation and traceability requirements
• High standards in welding and coating execution
• Existing qualifications for accident conditions (LOCA, ANLE, irradiation)
• Retrofit and replacement solutions with interface adaptation and restoration of prior qualifications

Generators and motors for SMR applications in the AI era
Small Modular Reactors (SMRs) provide compact, scalable, low-carbon power suitable for modular deployment and applications such as data centers. ELIN Motoren offers machines optimized for SMR constraints: reduced footprint, modular integration and phased commissioning.

Advantages of SMRs for Modern Energy Applications
Technical Advantages:

• Compact design and low space requirements
• Modular operation for flexible load management
• Passive safety systems using natural cooling mechanisms
• Suitability for off-grid sites and hybrid integration with renewables

Nuclear Qualification – The Complete Portfolio
Motors and generators can be fully qualified for nuclear applications across the lifecycle.

Qualification Scope

• Operation under extreme temperatures, humidity and steam atmospheres
• Seismic qualification for earthquake resistance
• Accident-condition qualification (LOCA, ANLE)
• Radiation resistance (irradiation) over the service life
• Delivery of safety-classified machines for critical functions

Standards & Regulations
KTA 1401, RCC-E, NSQ, NQA-1, ISO 19443, 10 CFR 50 App. B, 10 CFR 21

Application in SMR Plants

• Generators: Synchronous designs up to 65 MVA, voltages up to 15 kV
• Motors: For all nuclear auxiliary and process applications under all environmental and accident conditions, from 37 kW for low- and high-voltage systems

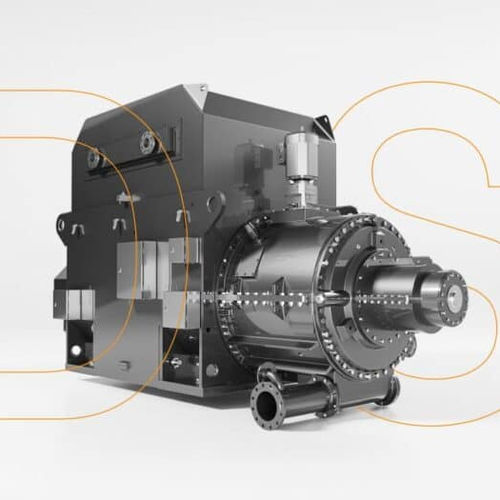

E-Pack DS: Compact Drive and Generator Unit
Developed with Voith, the E-Pack DS integrates electric machine and gearbox into a compact, pre-assembled synchronized unit that reduces footprint and simplifies integration—particularly suited to SMR layouts.

Features

• Power output up to 40 MW
• Integrated gearbox for compact design
• Pre-assembled for rapid installation
• Optimized for high efficiency and reduced maintenance

Available generators (excerpt)

• HSJ – High-voltage salient-pole synchronous generator, air-cooled. IC01/ODP, 4-pole, up to 10 MVA, up to 15 kV, IEC60034
• HTJ – High-voltage drum-rotor synchronous generator, air-cooled. IC01/ODP, up to 15 kV, up to 16 poles, up to 64 MVA, IEC60034
• HSV – High-voltage salient-pole synchronous generator, self-cooled with duct connection. IC31/TEPV, up to 15 kV, up to 25 MVA, up to 50 poles, IEC60034
• HTV – High-voltage drum-rotor synchronous generator, air-cooled with duct connection. IC31/TEPV, up to 15 kV, up to 25 MVA, up to 50 poles, IEC60034
• HTL – High-voltage drum-rotor synchronous generator, air-air cooled. IC611/TEAAC, 4-pole, up to 15 kV, up to 65 MVA, IEC60034

Available electric motors (excerpt)

• HKG – High-voltage squirrel-cage rotor, fin-cooled. IC411/TEFC, 0–3600 rpm, up to 13.8 kV, up to 2,500 kW, IEC60034
• HKR – High-voltage squirrel-cage rotor, tube-cooled. IC511/TEAAC, up to 10,000 kW, up to 15 kV, up to 3600 rpm, IEC60034
• HKL – High-voltage squirrel-cage rotor, air-air cooled. IC611/TEAAC, up to 15 kV, up to 15,000 kW, up to 3600 rpm, IEC60034
• HKH – High-voltage squirrel-cage rotor, water-cooled. IC7A0W7/TEWC, 3.3–10 kV, up to 2,000 rpm, up to 3,000 kW, IEC60034
• HKM – High-voltage squirrel-cage rotor, air-water cooled. IC81W/TEAWC, up to 15 kV, up to 35,000 kW, up to 3600 rpm, IEC60034
• MKG – Low-voltage squirrel-cage rotor, fin-cooled. IC411/TEFC, 55–1,600 kW, up to 1 kV, up to 3600 rpm, IEC60034
• MKM – Low-voltage squirrel-cage rotor, air-water cooled. IC81W/TEAWC, up to 1 kV, up to 5,000 kW, up to 3600 rpm, IEC60034

Technical characteristics / specifications (excerpt)

• Motor voltage range: 400 V to 15 kV
• Motor power range: 37 kW to 35,000 kW
• Generator range: up to 15 kV, up to 65,000 kVA (65 MVA)
• E-Pack DS: compact drive + integrated gearbox, up to 40 MW, pre-assembled
• Qualification capabilities: elevated temperatures, high humidity, steam atmospheres, seismic qualification, accident conditions (LOCA, ANLE), long-term radiation resistance
• Standards / references: IEC60034, KTA 1401, RCC-E, NSQ, NQA-1, ISO 19443, 10 CFR 50 App. B, 10 CFR 21
• Typical applications: primary water pumps, feedwater/condensate pumps, cooling water pumps, motor/generator sets, auxiliary drives, containment heat removal and other safety-related drives
• SMR suitability: compact design, modular operation, off-grid or hybrid system integration
