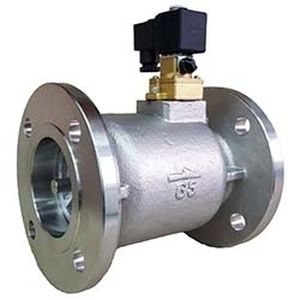

Pilot-operated solenoid valve BFEK

normally closednormally openfor water

Product Overview
Model BFEK is a non-conduit, pilot-operated solenoid control valve designed as an electromechanically operated valve to replace traditional gate, ball and butterfly valves where a compact pilot solution is required. The integrated solenoid pilot enables space-saving installation and simplified maintenance. Both the solenoid pilot and valve body are manufactured in Taiwan.

Model
BFEK

Main Product Details

• Material: Cast Iron; Ductile Iron; Bronze; Stainless Steel
• Size & Connection: Thread 1½'' to 2''; Flange 1½'' to 56''
• Pressure Range: 0.3–10 kgf/cm2
• Elastomer / Sealing: NBR; Viton

Key Features and Benefits

• No conduit required; compact design for easier transport, installation and maintenance
• Working voltages available: DC12V, DC24V, AC110V/220V, 50/60Hz
• Normally Closed type (Normally Open available upon request)
• Can be mounted horizontally or vertically
• Wide capacity range suitable for local water supply pressures and to match pump specifications
• Easy maintenance; repair and maintenance kits available

Frequently Asked Questions (FAQ)

• Q: Are Z-Tide solenoids AC or DC? Voltage options? A: Available in AC110V/220V or DC12V/24V as required.
• Q: What does Normally Closed mean? A: Normally Closed means the gate remains closed when not energized, preventing flow through the valve.

Applications
The BFEK valve is intended to replace conventional control valves (gate, ball, butterfly) where a compact, pilot-operated solenoid solution is preferred. Typical applications include waterworks, building services, fire protection and industrial systems requiring pilot-operated piston valve behavior.

Technical Specifications

• Model: BFEK
• Materials: Cast Iron; Ductile Iron; Bronze; Stainless Steel
• Size & Connection: Thread 1½''–2''; Flange 1½''–56''
• Pressure Range: 0.3–10 kgf/cm2
• Elastomer / Sealing: NBR; Viton
• Working Voltage: DC12V, DC24V, AC110V/220V (50/60Hz)
• Type: Normally Closed (Normally Open on request)
• Mounting: Horizontal or vertical
• Origin: Manufactured in Taiwan
• Maintenance: Repair/maintenance kits available
