XYZ adjuster MDE511

manual3-axisprecision

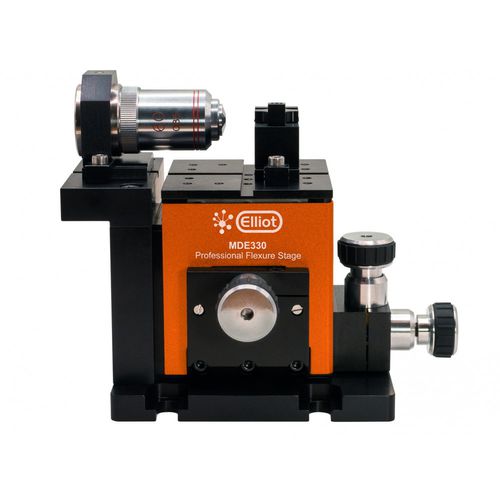

• Suitable for multimode fibre (125 µm) • Orthogonal alignment grooves • 200 nm resolution with 2 mm travel per axis • 4.5 kg load capacity • Ultra-stable patented† design XYZ flexure stage Elliot Gold™ Series Fibre Launch system comprising: 3-axis standard manual flexure stage with basic fibre (US: fiber) holder, objective lens mount with RMS thread, and small fixed bracket. Suitable for launching free space light beams into multimode fibre due to its accurate 3D flexure-based positioning. All accessories are compatible with the Elliot Gold™ series flexure stages. The optical axis height is 18 mm above the platform surface and on the centre line of the location slot. Where necessary a locating tongue forms part of the accessory. A standard clamp system is used and is supplied with the flexure stages and accessory platforms. The choice of objective lens is subject to user preference, and must be ordered separately. Extra clamp sets (MDE154) are available if required. Elliot MDE511 Gold series Fibre Simple Adjuster Launch System Axis Diagram System Constituents MDE711 Standard Fibre holder MDE330 Elliot Gold™ series XYZ High Precision Flexure Stage MDE217 Standard Manual adjusters 0.25 pitch (x3) MDE154 Clamp Set MDE150 Objective mount with RMS thread (Lens not included) MDE148 Small fixed bracket
