XYZ adjuster MDE521

manual3-axisstandard

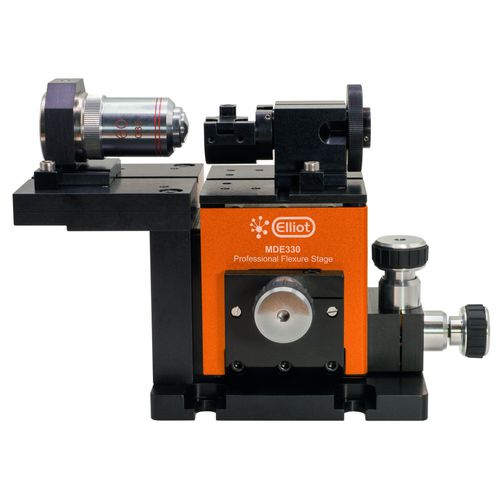

• Approximately 0.1 degrees rotational resolution • Suitable for PM fibre (125 µm) • Orthogonal alignment grooves • 200 nm resolution Elliot Gold™ Series polarisation maintaining (PM) fibre launch system comprising: 3-axis manual flexure stage with standard fibre (US: fiber) rotator, objective lens mount with RMS thread, and small fixed bracket. Suitable for launching free space light beams into PM fibre as this requires the roll axis to be adjusted to ensure correct alignment of the laser and fibre polarisation axes. All accessories are compatible with the Elliot Gold™ series flexure stages. The optical axis height is 18 mm above the platform surface and on the centre line of the location slot. Where necessary a locating tongue forms part of the accessory. A standard clamp system is used and is supplied with the flexure stages and accessory platforms. The choice of objective lens is subject to user preference, and must be ordered separately. Extra clamp sets (MDE154) are available if required. System Constituents MDE718 Standar Fibre rotator MDE330 Elliot Gold™ series XYZ High Precision Flexure Stage ( with 1x MDE154 clampset incl) MDE217 Standard Manual adjusters 0.25 pitch (x3) MDE150 Objective mount with RMS thread (Lens not included) MDE148 Small fixed bracket with clamp set Specifications onfiguration - Right handed version Fibre holder - V-groove & single clamp arm for 125 µm fibre. Spring-loaded clamp arm force adjusts from 25 to 125 g Fibre rotation - Full 360° rotation. Resolution approx 0.1 degrees
