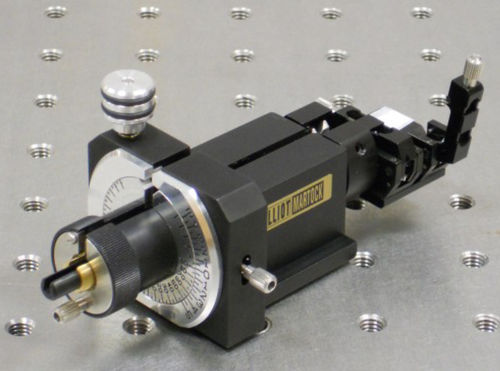

High precision optical fiber rotator MDE717-RH

•Slotted design for easy insertion and removal of fibre •Full 360° rotation •Fine adjustment screw with 5 arc seconds resolution •V-block preset on axis with less than 1 µm concentricity error •V-block can be re-centred by user •Integrates with Elliot Gold™ series flexure stages Designed for the most demanding rotation and alignment of angular sensitive components. It can be used anywhere that stable, accurate fibre (US: fiber) rotation is needed. The popular MDE717 fibre rotator is an updated version of the original and offers the same highly accurate rotation in a more stable package. All accessories are compatible with the Elliot Gold™ series flexure stages. The optical axis height is 18 mm above the platform surface and on the centre line of the location slot. Where necessary a locating tongue forms part of the accessory. A standard clamp system is used and is supplied with the flexure stages and accessory platforms. The clamp set (MDE154) is available separately if required. Specifications Rotation adjustment 360° Coarse adjustment Engraved scale ± 90°, vernier reads to 30 arc minutes Fine adjustment Screw with 5 arc seconds resolution Range ± 5° Fibre fixturing Fibre held in double V-groove by two clamp arms Clamp load Adjustable 25 g to 125 g V-block preset on axis with less than 1 µm concentricity error V-block can be re-centred by user Standard V-groove for 125/250 µm fitted Split spring sleeve retains fibre in slot at the control end and prevents fouling during rotation Further options Custom sized V-grooves OEM upgrade kits for fusion splicers to facilitate splicing of PM fibre Connectorised fibre version
