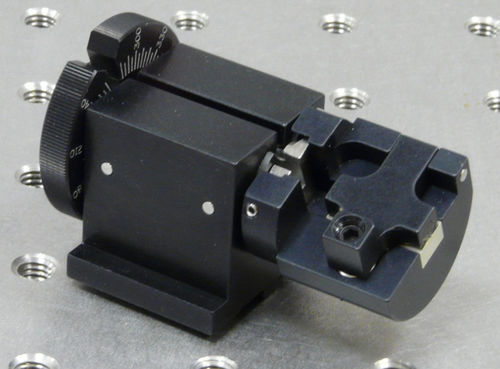

3-axis positioning system MDE718

opticalrotaryfor fiber optics

•Slotted design for easy insertion and removal of fibre •Full 360° rotation •Resolution approximately 0.1° •Fibre held in V-groove by single clamp arm •V-block can be re-centred by user •Integrates with Elliot Gold™ series flexure stages An economical fibre rotator designed for less demanding rotation alignment of angular sensitive components. It can be used anywhere that stable, accurate fibre (US: fiber) rotation is needed. All accessories are compatible with the Elliot Gold™ series flexure stages. The optical axis height is 18 mm above the platform surface and on the centre line of the location slot. Where necessary a locating tongue forms part of the accessory. A standard clamp system is used and is supplied with the flexure stages and accessory platforms. Specifications Rotation adjustment 360° Resolution approximately 0.1 degrees Fibre fixturing Fibre held in V-groove by single clamp arm Further options Custom sized V-grooves OEM upgrade kits for fusion splicers to facilitate splicing of PM fibre Custom versions compatible with fibre chucks Clamp set (Model MDE154)
