Box computer FlexCom SmallembeddedIntel® Core™ i5-6300UDDR4 SO-DIMM
Add to favorites
Compare this product
Characteristics
- Type
- box
- Configuration
- embedded
- Processor
- Intel® Core™ i5-6300U
- Ports
- DDR4 SO-DIMM, M.2
- Protection level
- MIL-STD-810G
- Other characteristics
- SSD
Description

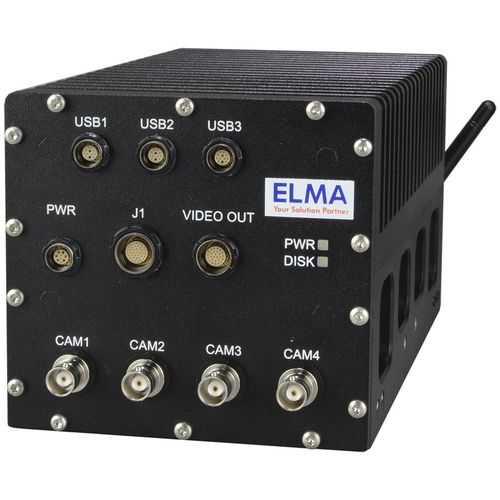

Designed with a ruggedised, conduction-cooled chassis, FlexCom small is a configurable, COM-Express-based embedded computing platform. A video capture board is connected to a HD SDI camera.
Product Features
CPU Options i5-6300U, 2.4/3.0 GHz, 15 W, 8GB DDR4 So-DIMM
PSU 16-80 VDC input, 75W, Galvanic isolated, EMI filter integrated, MIL-STD-704F
Storage SSD M2 64GB
Front I/O: 3x USB; 1x Display Port; 2x GbE; 4x GPI; 4x GPO; 2x UART (RX / TX)
I/O Connectors: 1x 40 pol. ODU / AMC; 1x 27 pol. ODU / AMC; 3x 12 pol. ODU / AMC; 1x 9 pol. ODU / AMC
4x Mini-PCI-e and a M.2 connection for storage
Operating temperature range: -45°C to +70°C
Designed to meet MIL-STD-810G, MIL-STD 461
