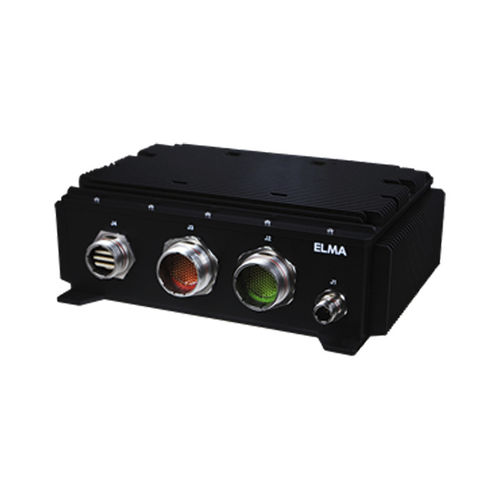

The ComSys-5361 is a rugged COTS mission computer. Feature-packed and power stingy, a 12W Intel Atom CPU supports signal processing for critical applications. Highly configurable, application-specific I/O. Removable drive bay for two 2.5“ SSDs.
Product Features
28 VDC MIL-1275/704 power supply with transient protection
Dual 2.5“ SSD removable drive bay. Inquire about optional high insertion / extraction cycle connectors
4 x miniPCIe / mSATA expansion sites application specific I/O
I/O configurations may include CANbus, MIL-1553, video, ARINC-429, RS-232/422/485, GPS, Ethernet, mSATA storage and others
COM Express type 6 module / carrier architecture
Lightweight aluminum, fanless, passive conduction cooling with protection including high water levels and particle ingress
Low power operation enables use in long duration missions as part of overall power budget
High bandwidth reliable MIL-STD-38999 and Hercules circular connectors
MIL-STD-810G and MIL-STD-461G qualified for EMI, thermal, shock, vibration, altitude and humidity etc.
