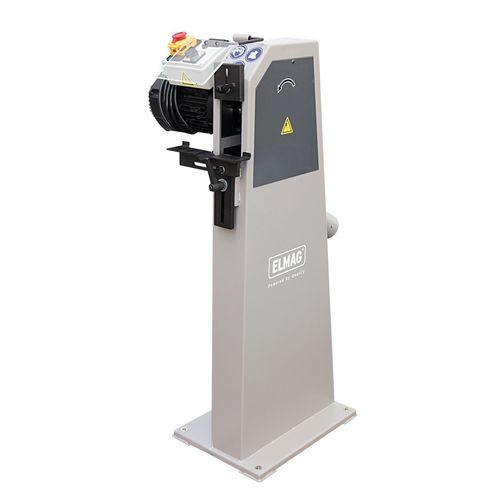

The ELMAG brush deburring machines remove burrs from bar profiles and flat materials. Fast-rotating special brushes for steel, stainless steel and aluminium cut off internal and external burrs, leaving clean, slightly rounded edges without burrs or counter-burrs - in no time at all and with a single operation.
ELMAG brush deburring machines also clean castings and de-rust metal surfaces, strip painted surfaces and are ideal for preparing welds and surfaces for priming.
Standard features
- Horizontally adjustable workpiece support
- Vertically adjustable support
- Spark protection with eye protection glass
- Two-stage control
- Emergency stop button
- Zero voltage release
- Robust steel sheet column
- Connecting cable 4 m
- Operating instructions/CE
Special accessories
- Deburring brush STEEL, 250x60x0.2 mm
- Deburring brush STEEL, 250x60x0.35 mm
- Deburring brush STEEL, 250x60x0.5 mm
- Deburring brush STAINLESS STEEL, 250x60x0.35 mm
- Deburring brush STAINLESS STEEL, 250x60x0.5 mm
Technical Facts
-Powerful AC drive
-Flexible use - two speeds 1,380 and 2,840 rpm for hard & soft brushing and deburring
-Optimal handling - workpiece support horizontally adjustable
-Swivel, vertically adjustable support
-High load capacity - large brush mounting
-Reliable - machine column made of sheet steel, adjustable spark protection, eye protection glass, emergency stop, zero voltage release, CE-compliant
Specifications
brush diameter
250 mm
Brush width
55 mm
speed gradually
2
brush speed
1: 18 / 2: 37
Brush rotation speed
1: 1380 / 2: 2840 rpm
