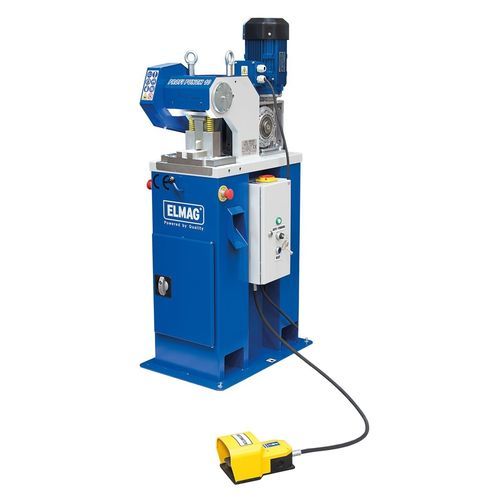

Manual punching machine PREMIUM PES 10/4electriccuttingforming
Add to favorites
Compare this product
Characteristics
- Control
- manual
- Drive type
- electric
- Associated function
- cutting, forming
- Pressing force
10 tf
- Engine power
2,200 W
(2.99 hp)- Cadence
35 rpm
(219.9 rad.min-1)- Part weight
190 g
(6.7 oz)
Description
PREMIUM PES 10/4 is a punching machine specially designed for forming material by punching and cutting.
It can be used for processing up to 4 mm thick. It is
operated by an electric foot pedal.
The machine can be supplied with 6 different punching tools:
- corner wedge punch
- wedge punch
- pipe cutter for vertical pipes
- slot
-punch - corner rounding
-punch - corner cutter
Specifications
pressure force
10 t
motor power
2200 W
motor rotational
1400 rpm
rotational of shaft
35 rpm
single working cycle of punch
1.7 sec
max. working power
1600 Pcs./hour
Noise level (peak)
60 dB(A)
chain transmission efficiency
0.95
chain transmission proportion
2:01
Length
680 mm
Width
440 mm
Height
1.214 mm
Weight
190 kg
